Schulte Rotary Cutters have earned a reputation for durability, efficiency, safety, and ease of maintenance that lets you spend far more time working with them than working on them. They’ve proven themselves tackling everything from grass to small trees on farms, in highway ditches, and at airports, construction sites, or any area that needs to quickly transform from wild to usable.

Two mid-size FX Series cutters, the FX-107 with its 7” cutting width and the 9” FX-209 share many sought-after Schulte features. These include heavy-duty drivelines, a multi-beneficial domed deck, and multiple innovations that make these two machines efficient, tough, safe, and low maintenance. Both are well-equipped to take down everything from grass to trees up to 3” in diameter.

How do they differ? The 107 is a pull-type mower that is tapered at the back to make tight turns around trees, poles, guy wires, etc. It also features a larger pan with shorter blades to provide extra durability. The 209 has “push or pull” capability, meaning it can be attached behind or in front of your tractor, providing more versatility and visibility for your cutting.

See below for more similarities and differences.

Features:

• Single domed 7-gauge continuously welded deck:
• Easy to clean
• Dome-shaped surface sheds water, preventing pooling and rust
• Helps shed debris during cutting
• Lighter weight than double decks.
• Oil level sight glass on the rotor gearboxes for easier maintenance checks
• 6 mm x 100 mm deck protection rings guard against blade impact.
• Spun formed 7-gauge stump jumper (round skid pan) provides durability and balance.
• Schulte’s exclusive Pentagon Blade Bolt maximizes anti-rotational resistance, where the blade fastens to the stump jumper pans.
• Standard Super Suction 1/2" x 4” blades
• Leave nothing behind.
• Impact strength increased by a hardening process
• Chamfered around the blade bolt hole to provide a smooth transition of surfaces around the high stress blade bolt area.
• Shot peened to distribute compressive surface stresses over the blade’s full length of the blade for more durability and longer fatigue resistance.
• Forged cutting edge is stronger and tougher, extending the life of the blade
• Optional mulching blades available.
• Deep side skirts and high blade tip speeds optimize cutting performance and material flow.

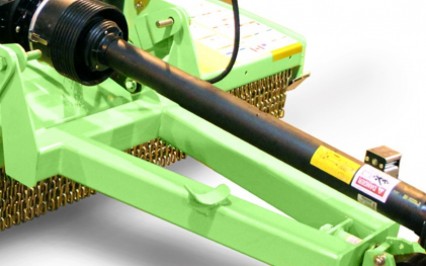

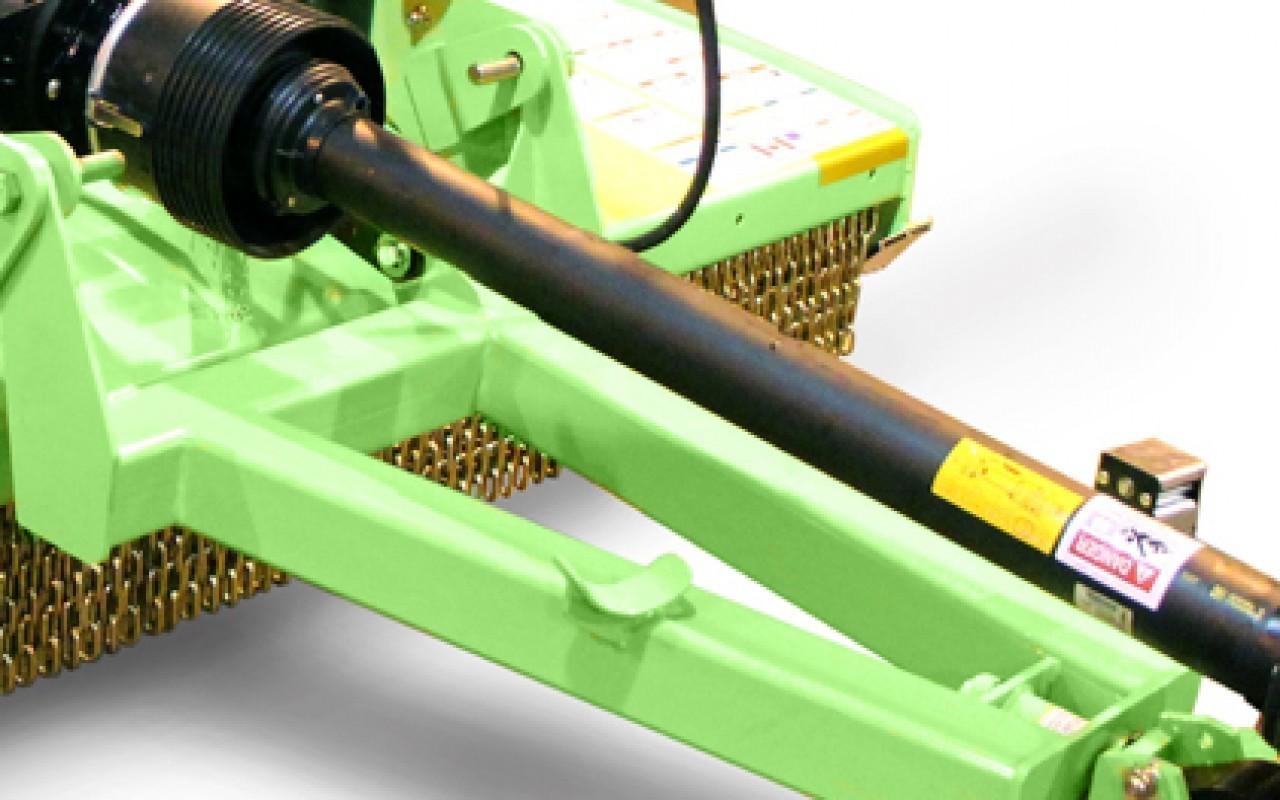

• Durable driveline cover and front and rear double chains with half-rubber flaps improve safety.
• Two-piece replaceable skid shoes feature 10 mm thick abrasion resistant steel.

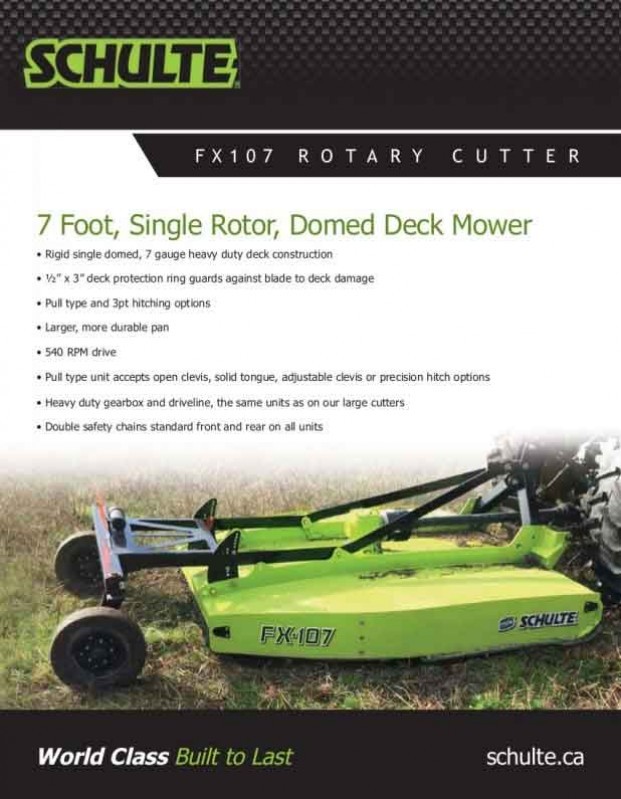

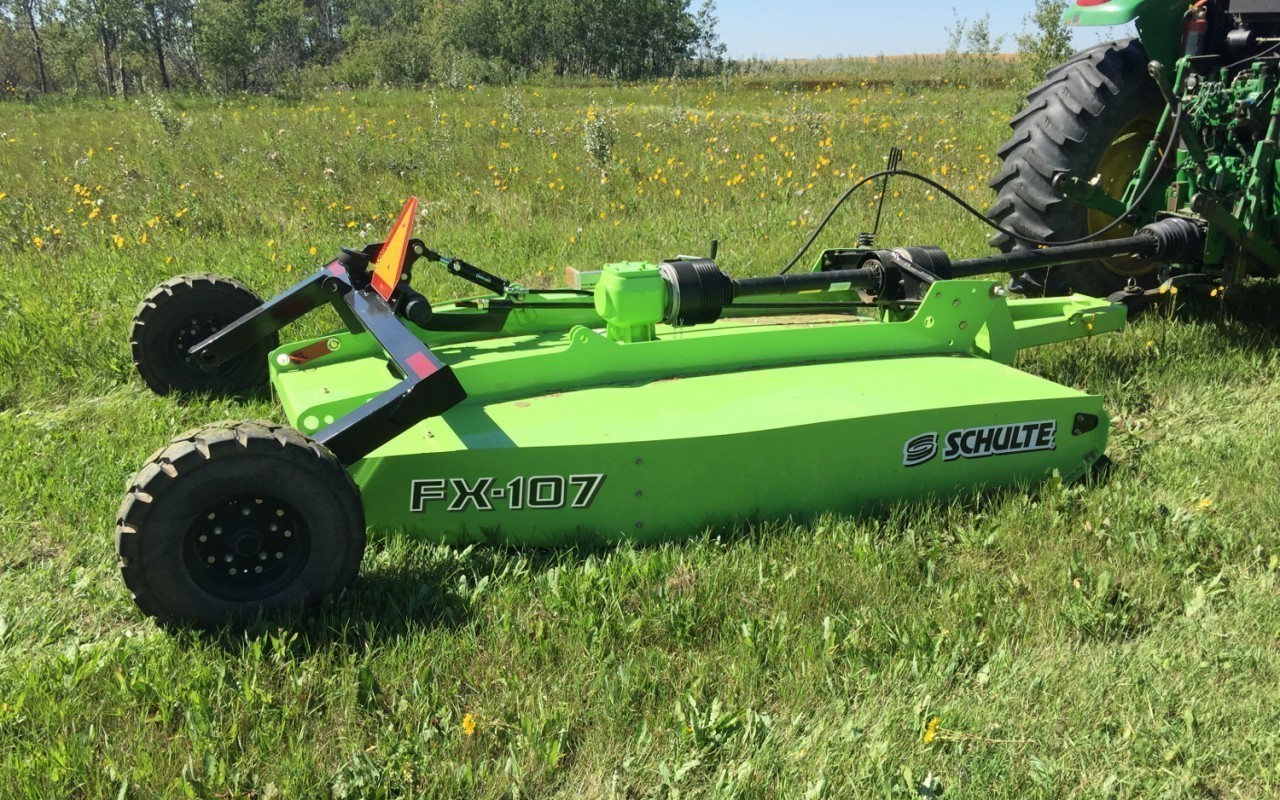

Model FX-107:

Driveline: 540 RPM drive, heavy-duty Bondioli gear box (1) and drive line.
Hitch: Trailing and 3-point linkage options.
Hitch Configurations: Precision hitch, open clevis hitch, pro level hitch, and solid tongue hitch options.

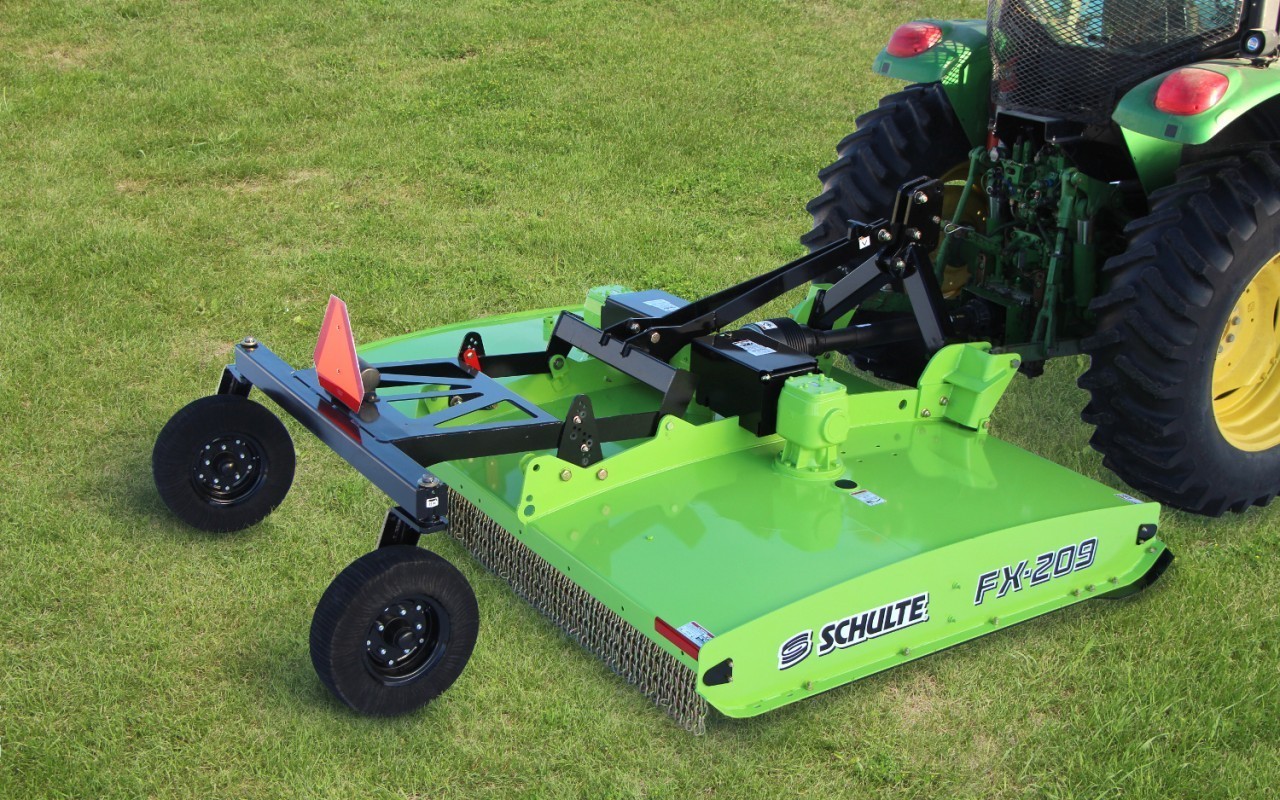

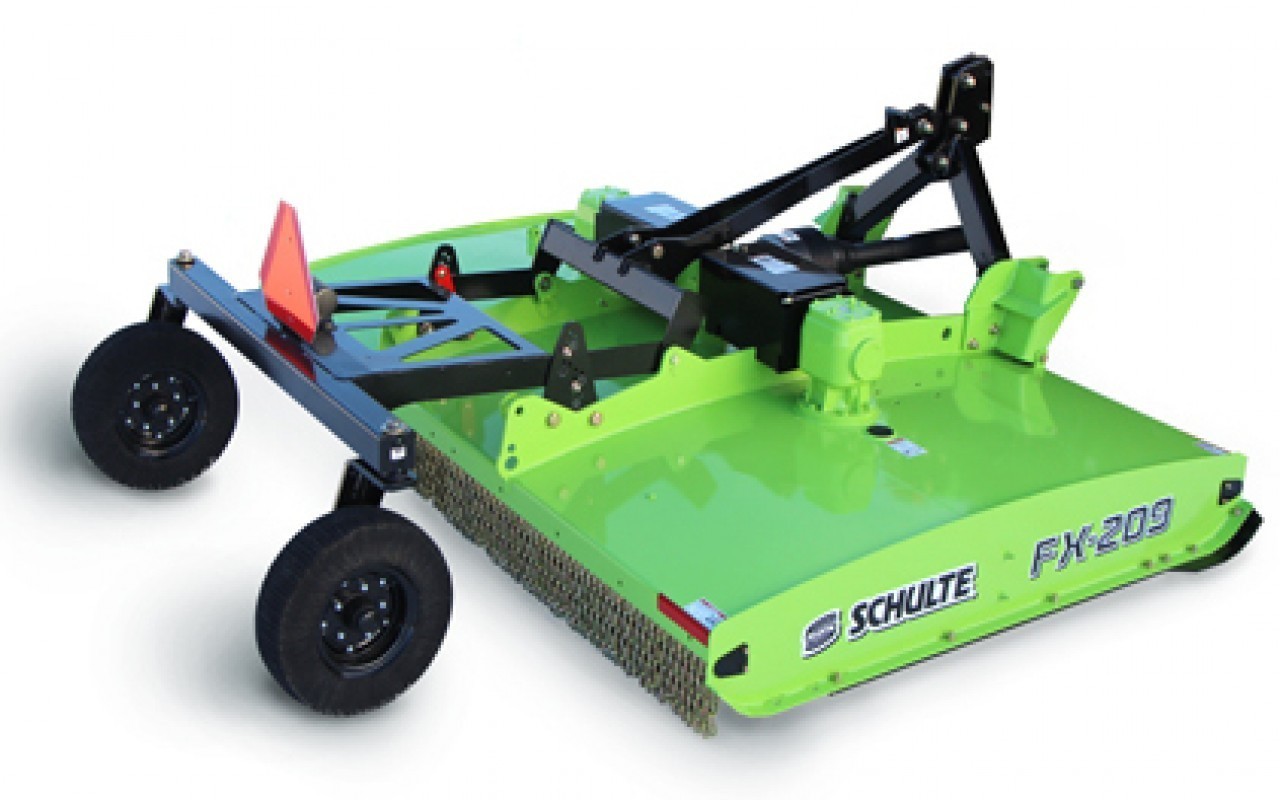

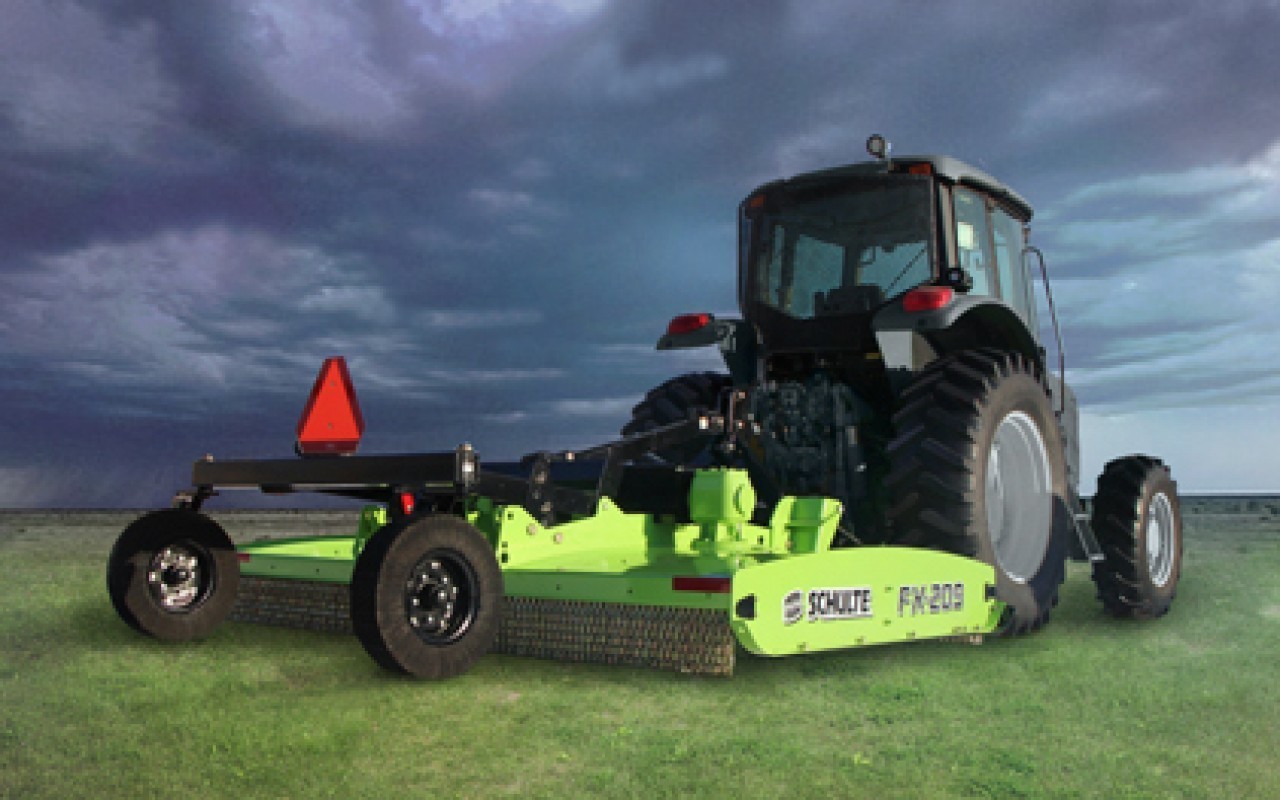

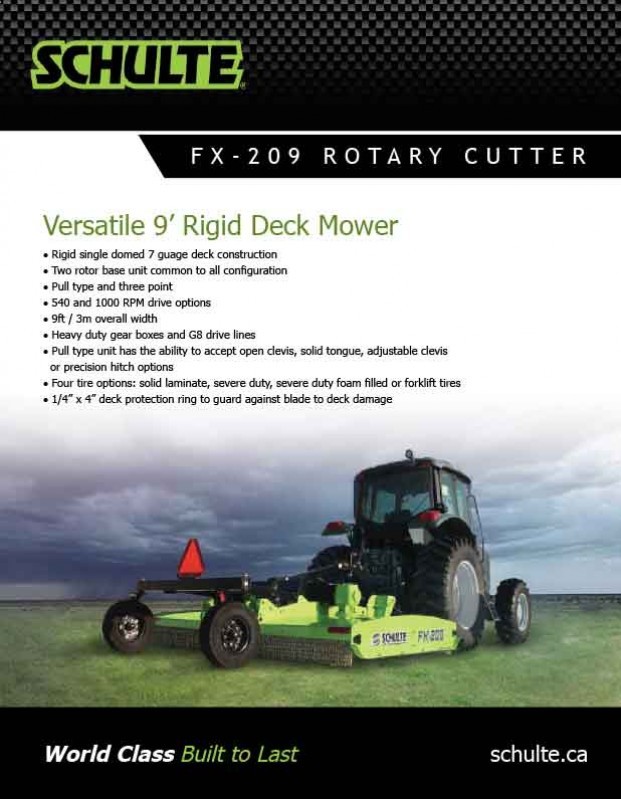

Model FX-209:

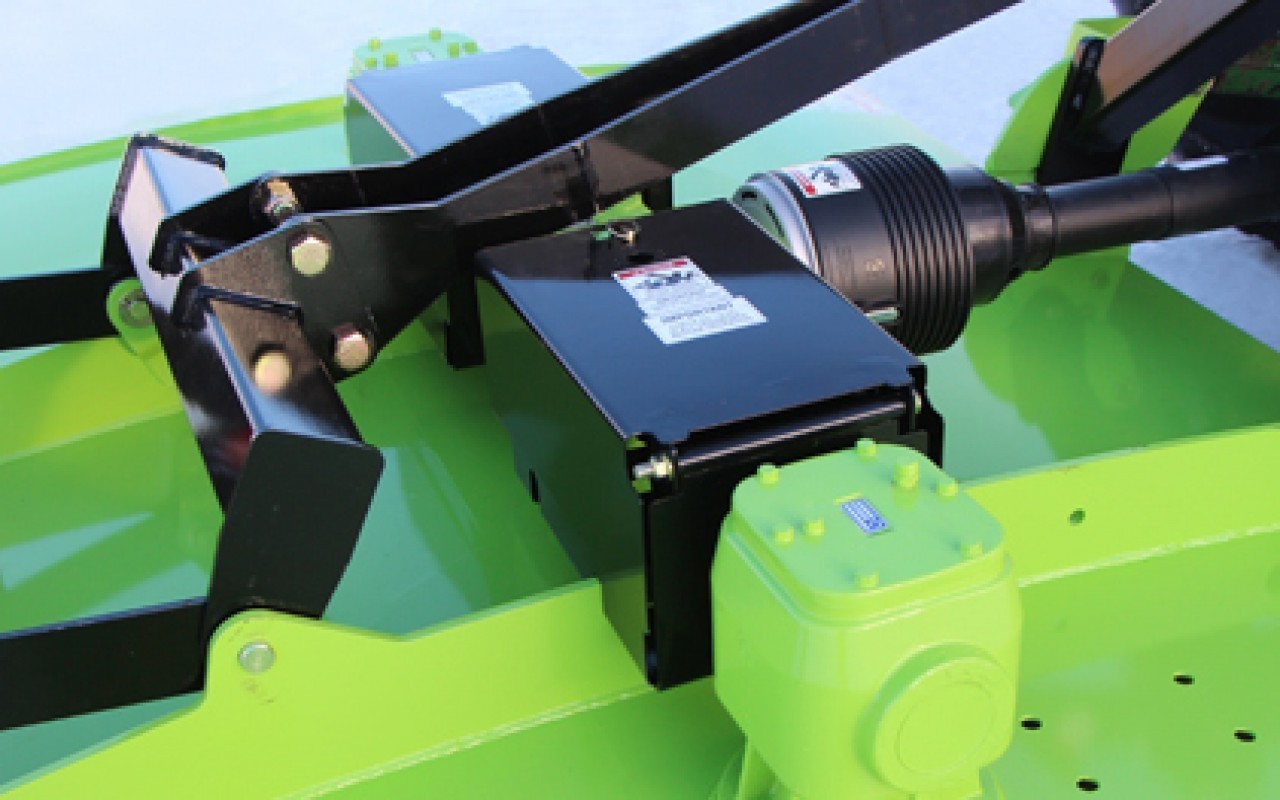

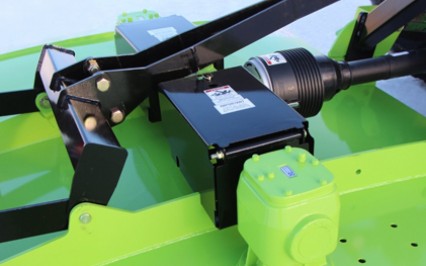

Driveline: 540 or 1000 RPM category 6 drive options at the same price. 2 heavy-duty Bondioli gearboxes
Hitch: Push or pull capability with linkage, trailing and semi-mount swing hitch options. Semi-mount swing hitch allows the unit to be hydraulically shifted 33 cm to the left or right to get under trees or around obstacles.
Hitch Configurations: Precision hitch, 3 point hitch, adjustable clevis hitch, trailing hitch

Discover these Durable Workhorse Cutters at Flaman

Want to know more about the Schulte FX107 or 209? We would be happy to walk you through the features and benefits that add up to more working hours and less downtime. Call or visit your nearest Flaman location.
