Manage field residue the way you want, no matter what time of year or how difficult conditions might be.

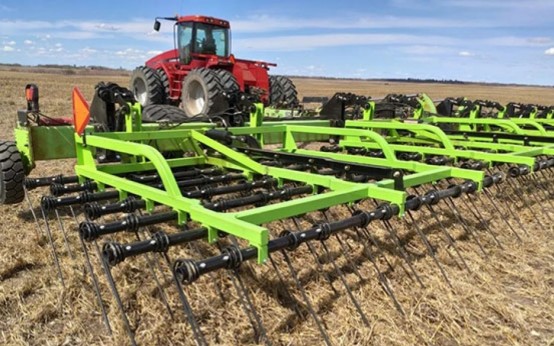

With its unique seven bar harrow tine design, a harrow from the Schulte SHX line can make it happen. The new 60' SHX-760 and 84’ SHX-784 feature a strategic array of light and heavy tines. That arrangement helps you distribute materials more evenly and gives you the power to move ground and break up straw as aggressively as you need to.
Contact Us Quote Request Similar InventoryExtra Information
Using Schulte’s Field Finish On DemandTM hydraulic harrow pressure system, you can take precise control of your tine depth and force. That allows you to optimize your results, whether you’re prepping your soil bed for seeding or managing residue after your harvest.
Features:
- Mix of thicker and thinner tines allows for more aggressive ground movement up front, better material distribution at the back, and even wear throughout.
- Longer tines for increased harrowing action/movement at the tip of the tine.
- Increased tine row spacing and tine spacing provides better material flow and distribution for an improved field finish.
- Heavier main tube and wings improve durability and harrow pressure, limit bounce, and reduce downtime in tough conditions.
- Negative pressure option increases speed, efficiency, and running time in damp or difficult conditions.
- 0-to-6-degree pitch angle raises back end for better material distribution in certain conditions.
- Steerable wing wheels make it easy to switch in or out of transport mode.
- MAX LIFE process applies weld-embedded tungsten carbide on Front of Tine for optimum toughness and economy
- Shorter, stronger Hitch delivers better and ensures overall robustness.
- Hydraulic lock for the wing tension links and safety lock pins prevents unintended engaging of wings during field operation.
- Greaseless bushings on hydraulic harrow control cylinder mounts for ease of service
Other Features
- Heavy Cast Main Frame Knuckle
- Hydraulic lock for wing tension links
- Optional Field Finish On Demand electronic control monitor
- Pitch angle control gauge
Specs
- Working Width: 60’(SHX-760) or 84’(SHX-784) available
- Transport Width: 15’
- Transport Height: 15’
- Weight: 21,000 lbs.(SHX-760) or 27,000 lbs. (SHX-784)
- Harrow Sections: 5(SHX-760) or 7(SHX-784)
- Width of Sections:12’
- Harrow Layout: 7 Bar
- Harrow Tyne Option 1: 3 front rows 5/8” x 28” with tip / 4 back rows 1/2” x 28” with tip
- Harrow Tyne Option 2: All rows 1/2” x 28” with tip
- Harrow Angle Adjustment: 32 - 90 degrees
- Harrow Tube Spacing: 16”
- Harrow Tyne Spacing: 1 23/32”
- Pressure Adjustment: Positive / Negative
- Frame Pitch Adjustment: 0 - 6 degrees
- Tires: 560/45 22.5 Radials
