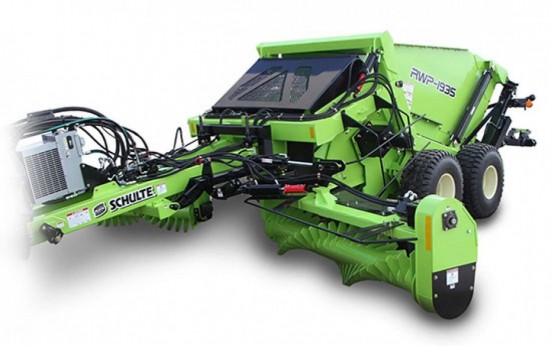

Remove rocks in one pass, with one operator driving one tractor. The Schulte RW-1935 Spartan is a rock picker and windrower in one. It starts with two side windrowers powered by chain drive and hydraulic motors. Floating on durable castor tires, they can adjust on the fly to provide up to 19’ of picking width. The windrower teeth dig down to a depth of 4.25”, dislodging rocks sized from 2” to 27”.
Contact Us Quote Request Similar InventoryFeatures
-

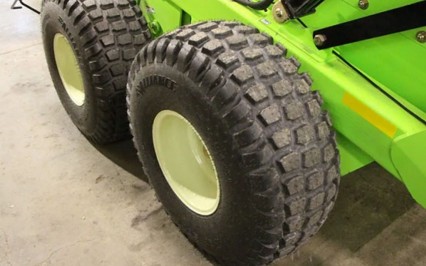

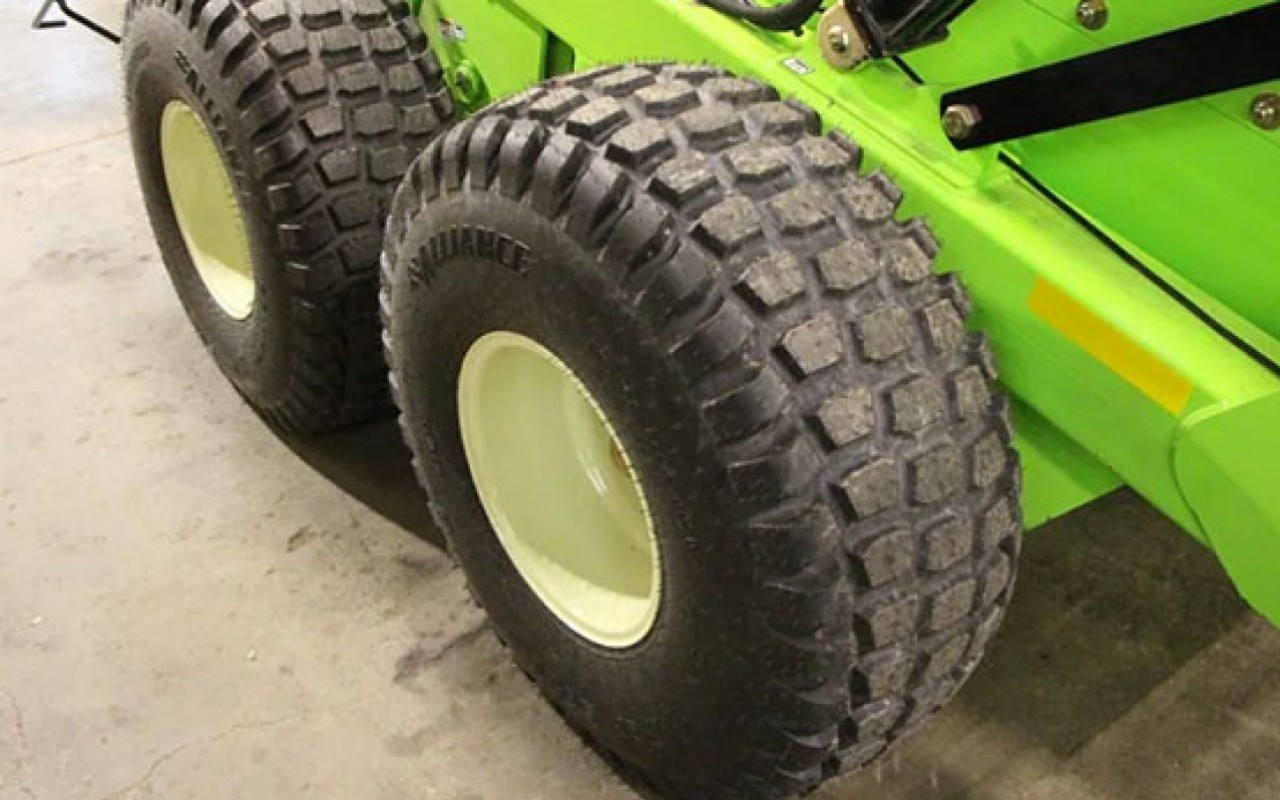

Tandem walking axles with 10 ply flotation tires
-

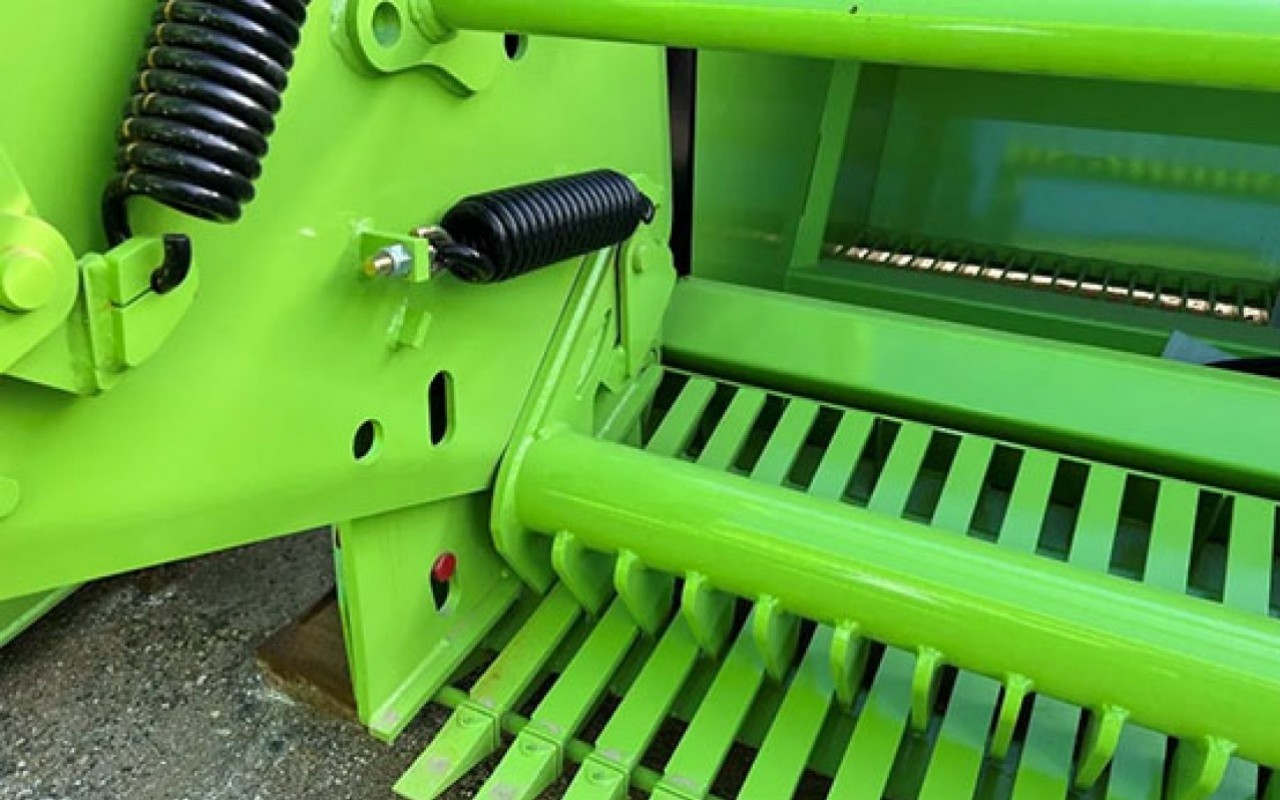

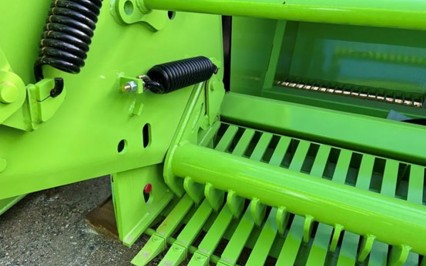

Heavy duty batt springs
Extra Information
These stones are windrowed to the centre of your unit, where the trailing rock picker devours them. Its 3.5 cubic-yard hopper can be raised to a dumping height of 8’7”, where soil is easily sifted out through rear and bottom grates.
The result is a clean field ready for seeding and an equally clean rock pile.
Features
- On-the-fly working width adjustment from 16’ to 19’
- Adjustable working depths down to 4.25” help dig up partially exposed stones
- Strong, durable, proven hard surfaced teeth and batt reels make it easy to pick rocks from 2” to 27”.
- Large, 3.5 cubic yard bucket and a 8’ 7” dumping height facilitate loading truck boxes and building high rock piles.
- Separate hydraulic adjustment of windrower and reel speeds to set up custom windrowing and picking
- Spring-loaded 450 BNH batts and 1.5” spaced T-Iron grate minimize rock jamming
- The 1935’s tandem-axle walking-wheel system provides exceptional flotation and ground following
Specs
- Working Width: 16’ - 19’
- Overall Width: 18’ - 21’
- Overall Length: 25’10”
- Transport Height: 10’2”
- Hitch Weight: 3520 lbs.
- Hopper Capacity: 3.5 cubic yards
- Dumping Height: 8’ 7”
- Tire Size Rock Picker: 16.5L x 16.1 x 10 ply
- Tire Size Windrowers: 27 X 10.5-15 Skid Steer Tire
- Tractor Hydraulic Requirements: 16 GPM with two remotes
- Minimum Tractor Size: 125 HP
- Recommended Reel Speed: 40 RPM
- Rock size capacity: 2”-27”
- PTO Driven Windrower Drive Hydraulics Option 1: 540-1-3/8” 6 Spline
- PTO Driven Windrower Drive Hydraulics Option 2: 1000-1-3/8” 21 Spline
- PTO Driven Windrower Drive Hydraulics Option 3: 1000-1-3/4” 20 Spline
