Looking for an easy-to-use and heavy-duty field disc?
Look no further than the Kello-Bilt Offset Disc from Flaman Agriculture.

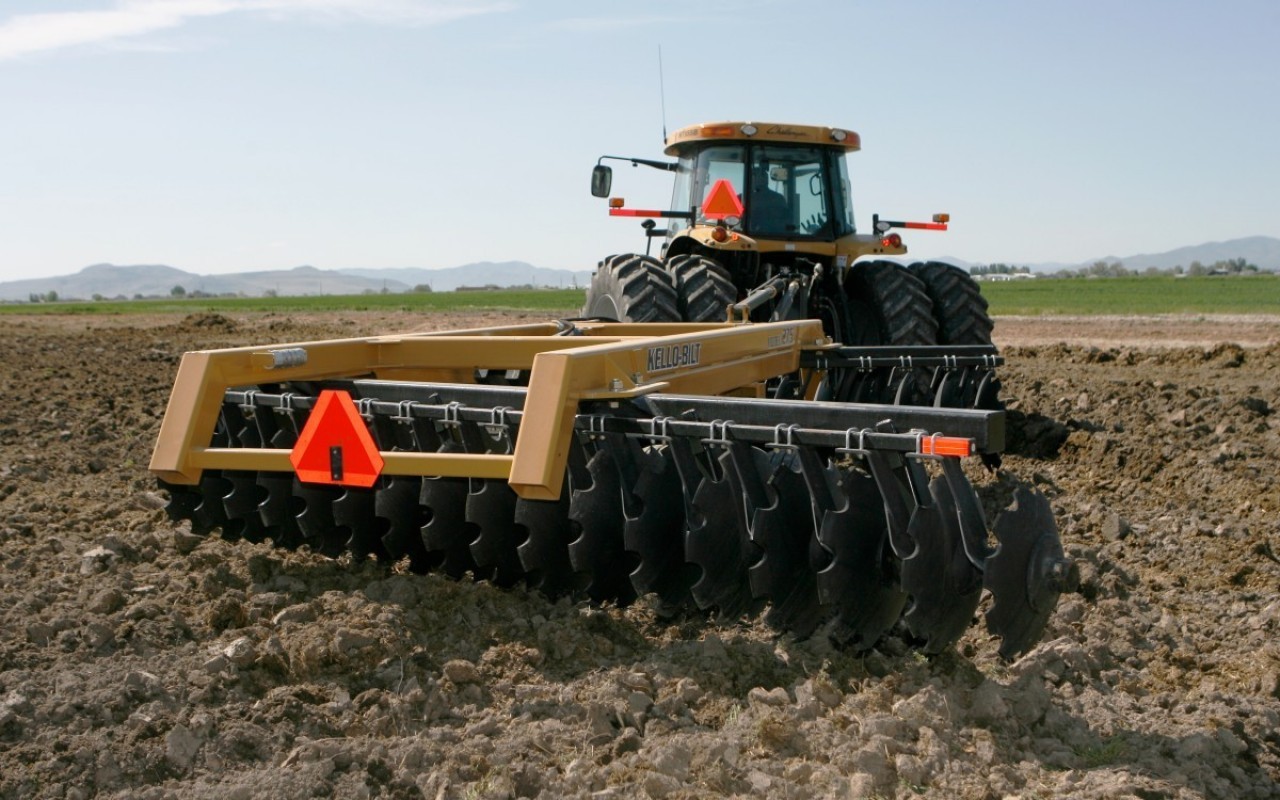

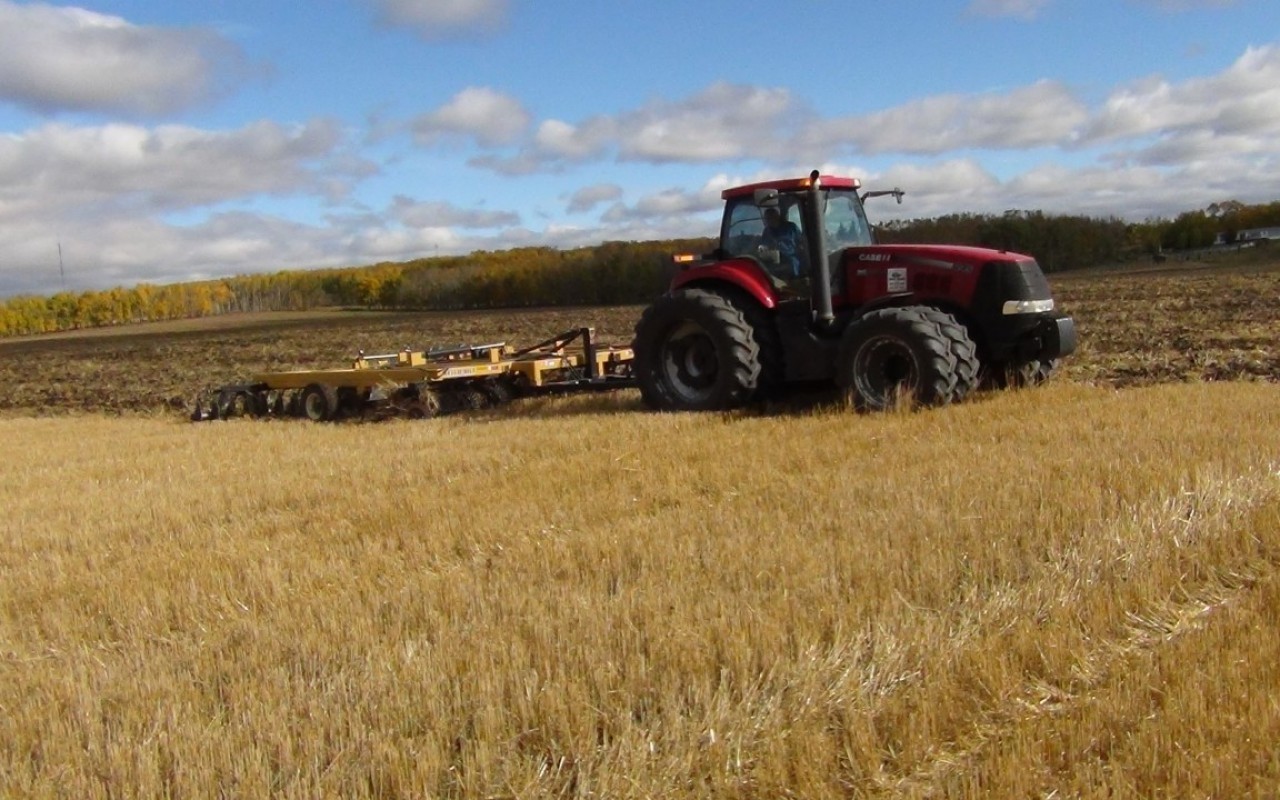

The Kello-Bilt Offset Disc is perfect for small horsepower tractors and can easily knock down heavy straw and crop residue. The smaller design allows for easier travel and storage while doing the same work as larger tandem discs.
Choose from the 9 available models with help from your local Flaman Ag Expert.
Features
-
Disc Blades
-
Frame
-

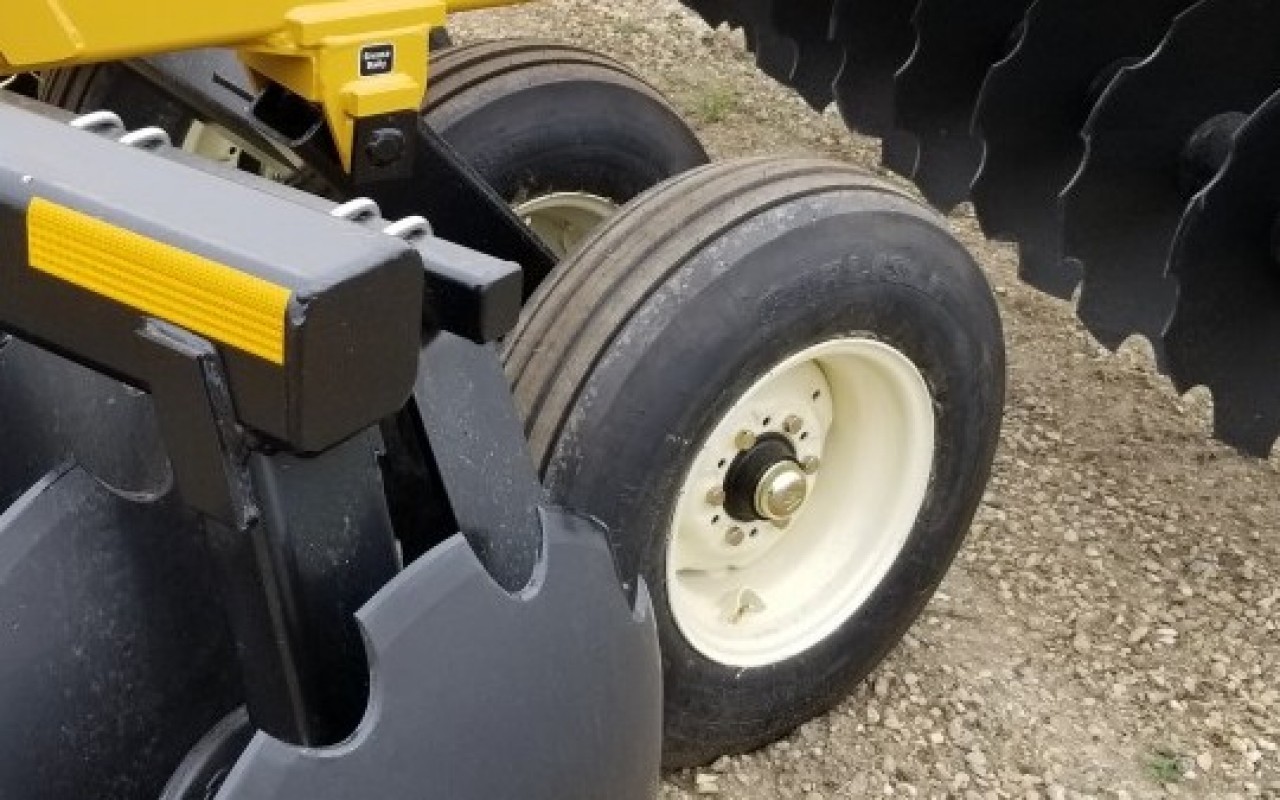

Hubs/Tires
-
Hydraulics
-

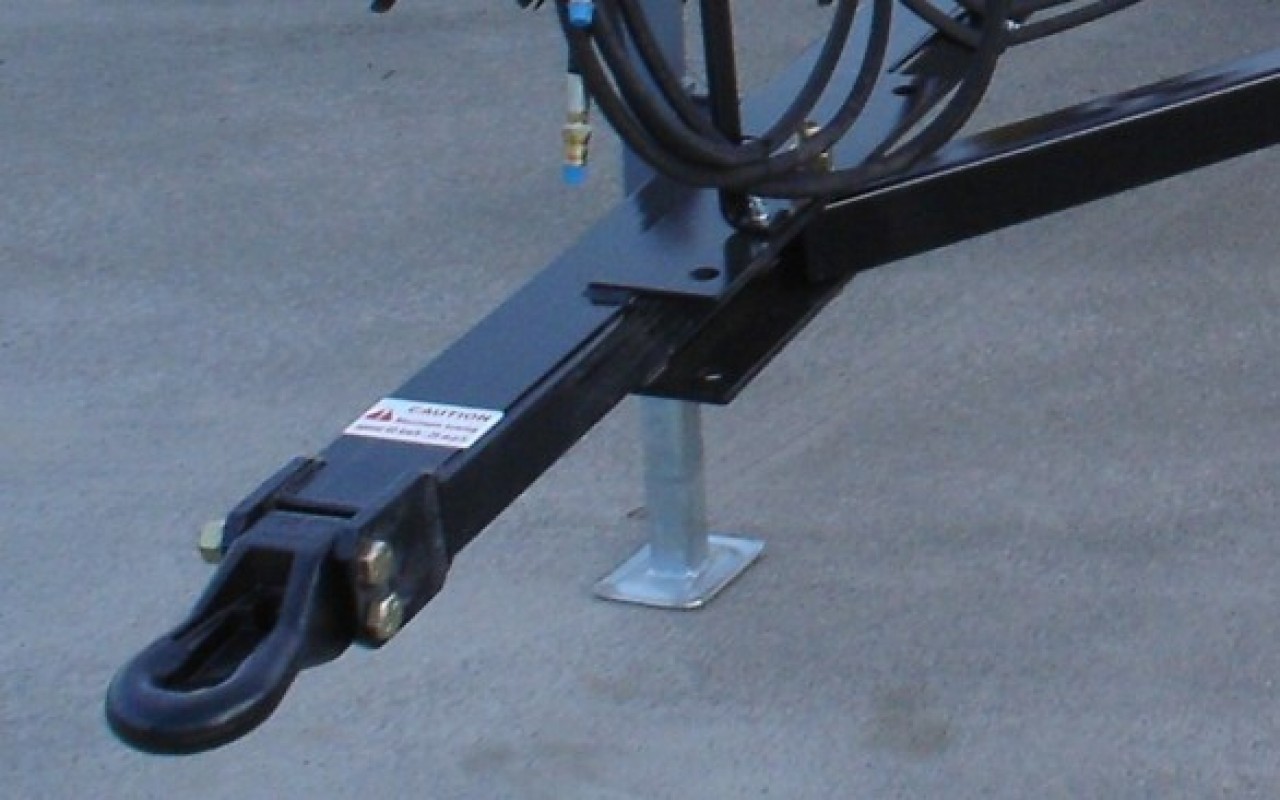

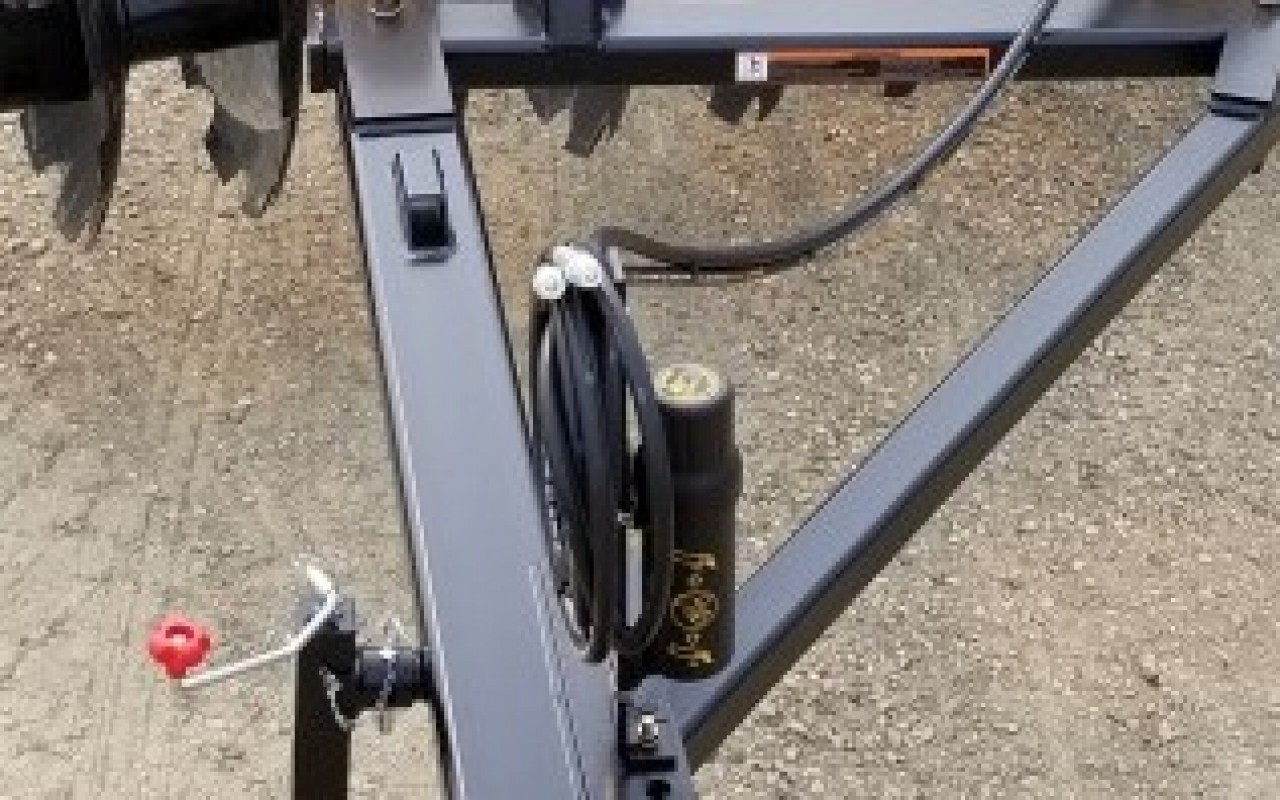

5000lb Hitch Jack
-
Steel Spacer Spools
Extra Information
Features of Kello-Bilt Offset Discs

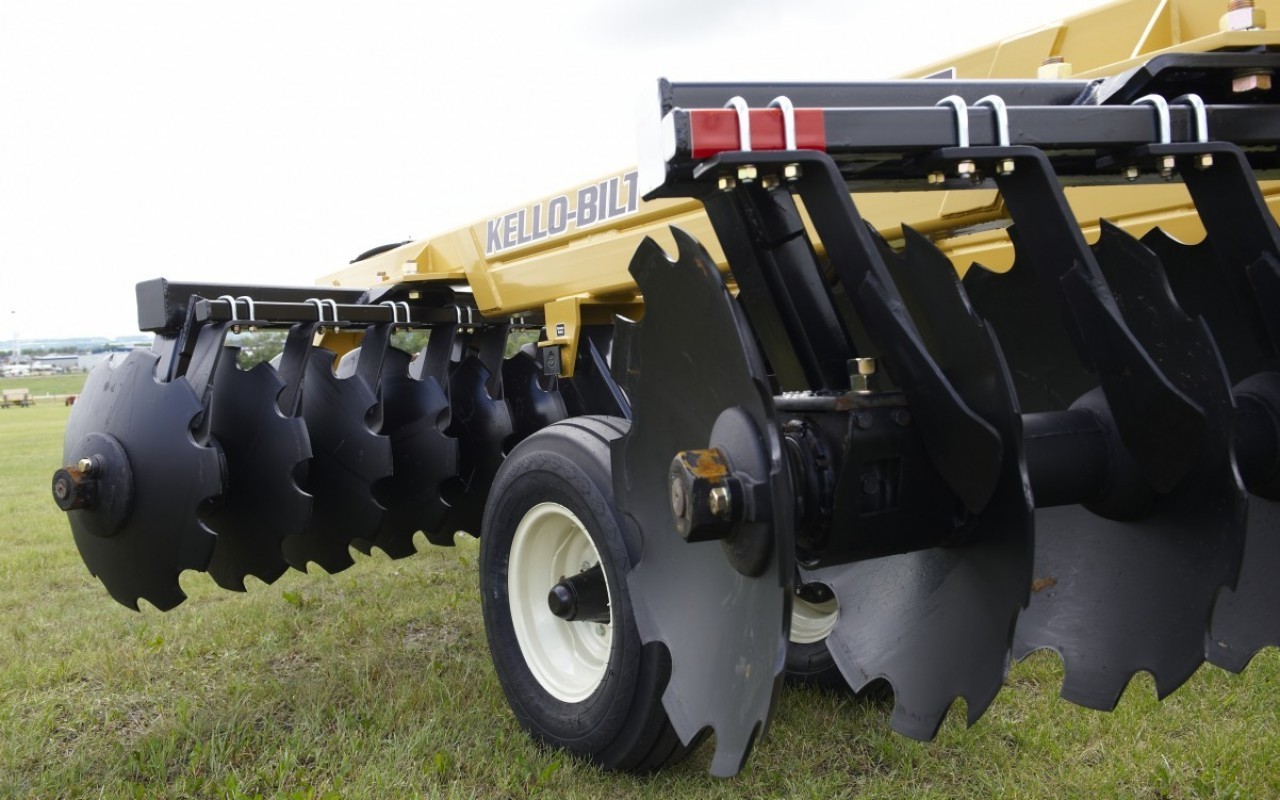

Oil Bath Bearing: Features back-to-back tapered roller bearings in 90W Gear Oil bath and sealed with Duo-Cone TM Seals.
Welded Spacer Spool: Fabricated steel spacer spools that won’t shatter or compress, provide maximum durability in the toughest conditions.

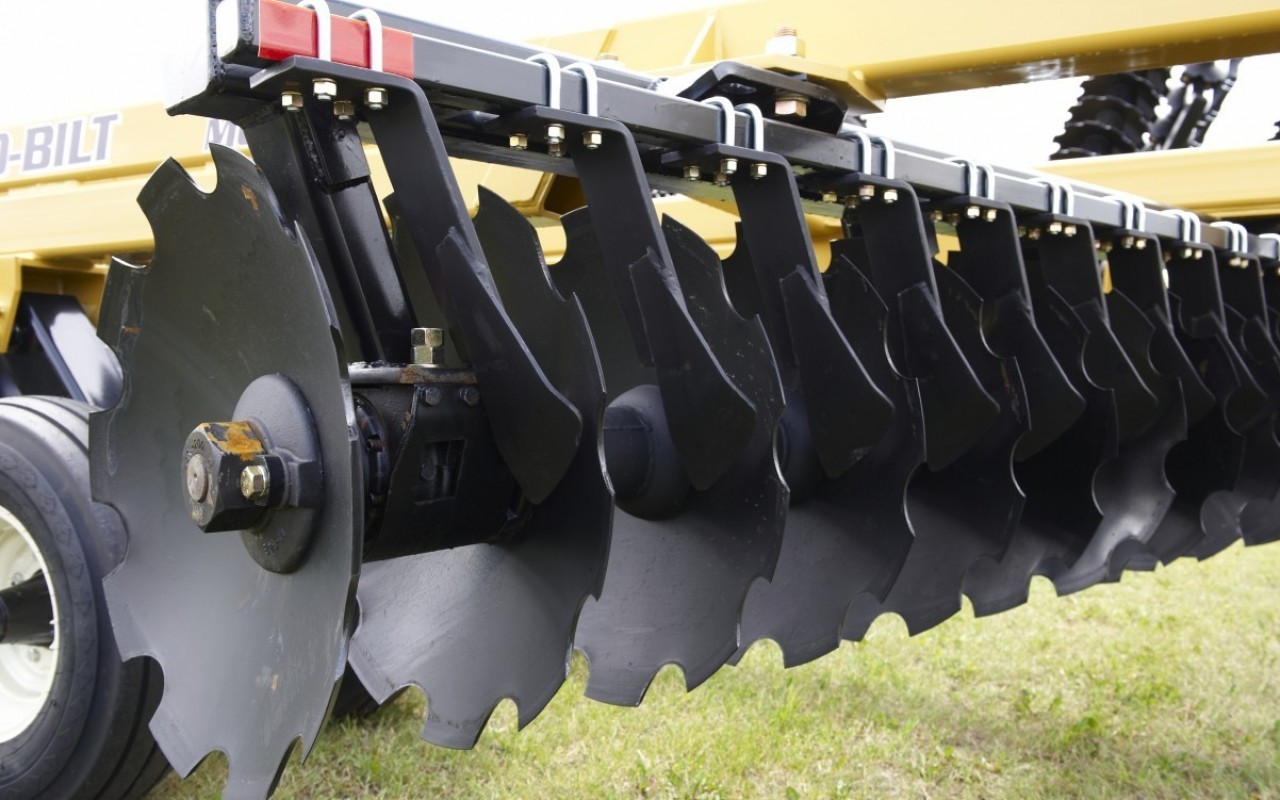

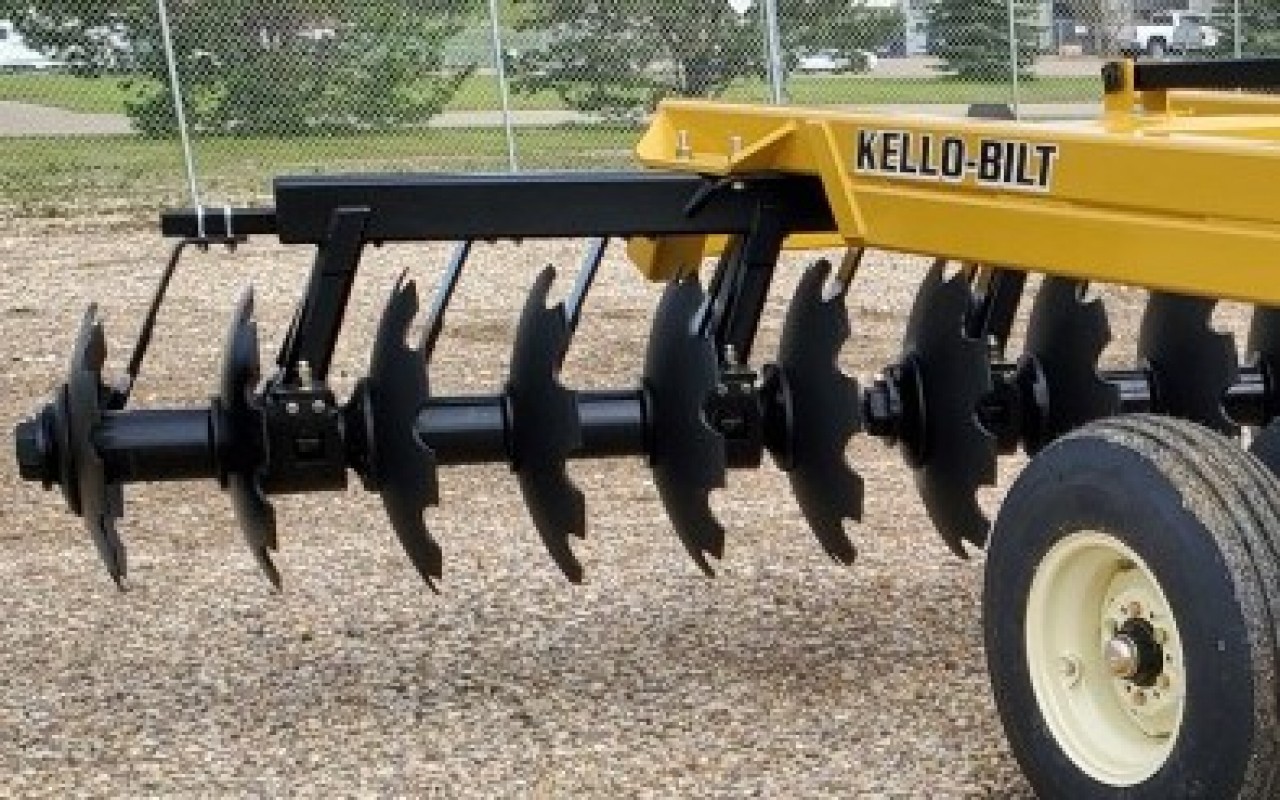

Disc Blades: Standard 26" notched disc blades on the front and rear make quick work out of the tough ground.
Gang Shafts & End Washers: Made of high carbon steel and designed to eliminate stretch or premature failure. Kello-Bilt's simple locking washer system makes sure both ends of the gang shaft are tight to reduce downtime in the field.
Bearing Standards & Wear Plates: Built from 3/8" thickness rectangular tubing for greater support and long life on the farm.
Gang Bar: Fabricated as a single piece for maximum stability, with no U-Bolts to stretch or loosen that can cause loose disc assemblies to bearing failures.

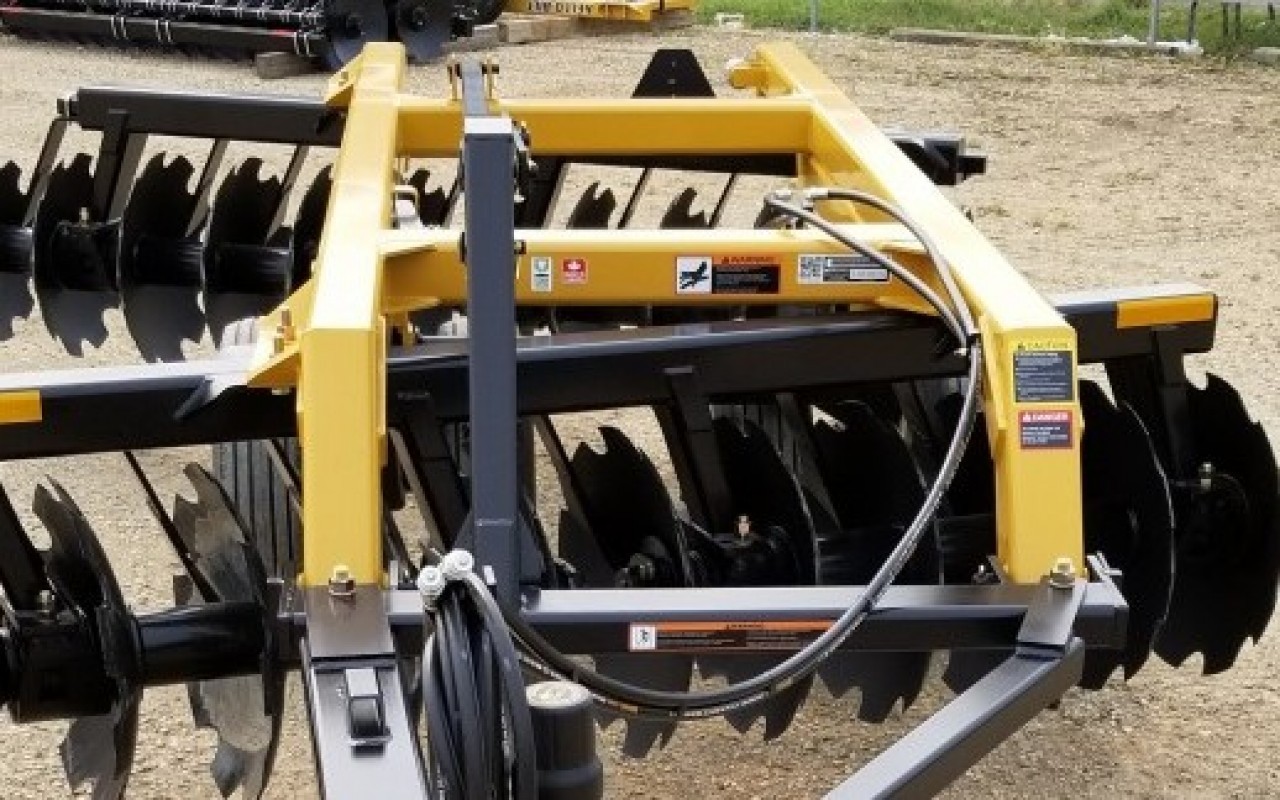

Heavy Duty Construction: Assembled with Grade 8 Zinc-plated bolts and hardware. The Offset disc is constructed with 6" by 4" high strength steel tubes with 3/8" wall thickness. Frames are fully welded and reinforced to withstand acres of rough use.
Made In Canada: Built in Red Deer County, Alberta.
View Specs for All 9 Models Available » Specs
| Gang Axel | 1-5/8 | -- |
| Blade Size | 24" | -- |
| Cut Width | 6'9"-12' | -- |
| Spacing | 9" | -- |
- Gang Axel
- Blade Size
- Cut Width
- Spacing
-
155
- 1-5/8
- 24"
- 6'9"-12'
- 9"
-

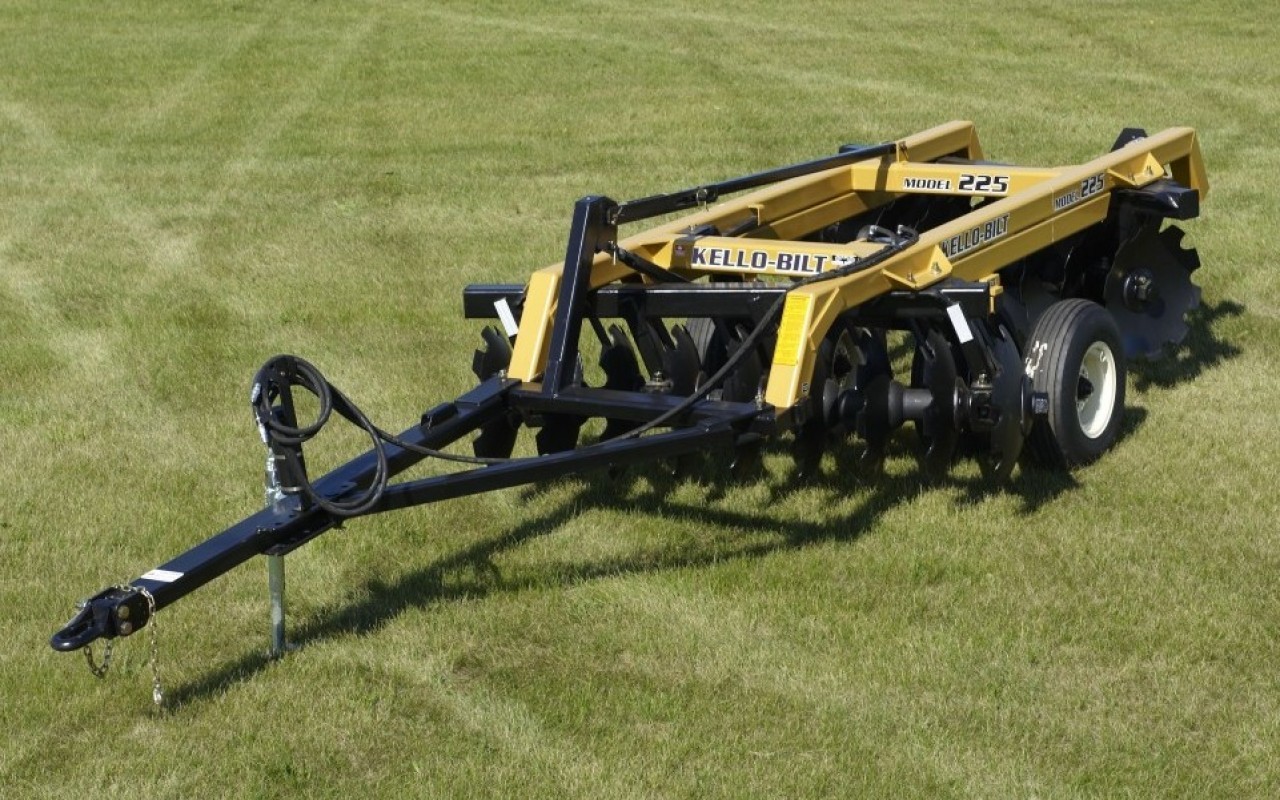

225
- 2-1/8
- 26"-28"
- 8'-24'
- 10-1/2"
-
275
- 2-1/8
- 26"-28"
- 8'-24'
- 10-1/2"
-
275F
- 2-1/8
- 26"-28"
- 8'-24
- 10-1/2"
-

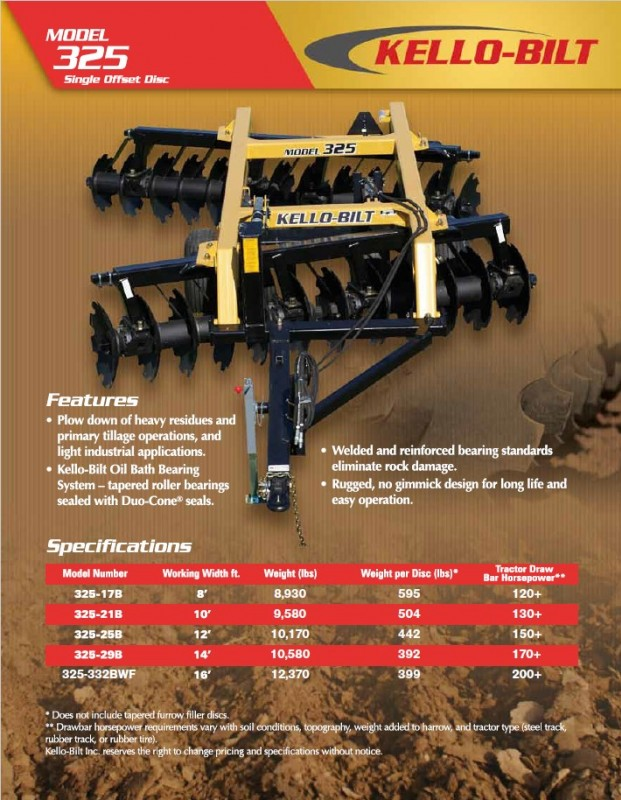

325
- 2-1/2
- 28"-32"
- 8'-16'
- 12"
-
400
- 2-12
- 30"
- 10'-14'
- 13"
-
500
- 2-12
- 32"
- 10'-13'9"
- 14
-
600
- 2-12
- 36"
- 10'-14'6"
- 17"
-
800
- 2-1/2
- 30"-42"
- 13'-20'
- 14"-17
