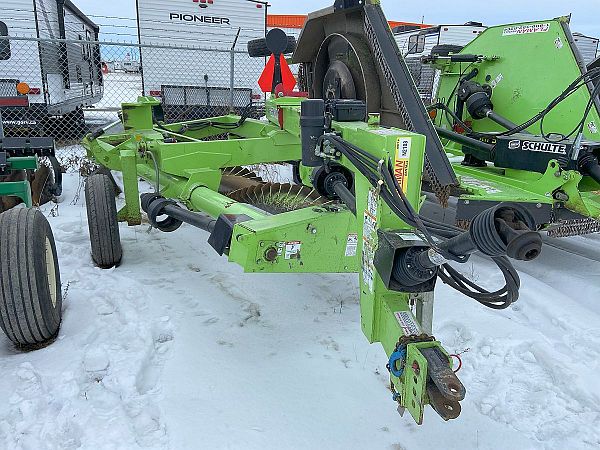

2021 Schulte SRW1400 Windrower Rock Rake

2021 Schulte SRW1400 540 PTO Windrower Rock Rake

Windrows 2" - 25" rocks with ease while breaking up lumps and leveling the ground. The Schulte Windrower rock rake is designed for small to medium rocks, forming them into neat uniform rows ready for pick-up.
Roots, stumps, chips and other debris from land clearing operations can also be windrowed. It's added tooth length increases combing action of rake and allows for superior windowing of rocks

• Transports at an ultra narrow width of 93” (2.36 M).
• Windrows 2” to 25” rocks with ease, forming them into neat uniform rows.
• The SRW-1400 540 PTO powered.
• The final drive chain is totally enclosed for longer service life. #100 drive chain.
• The rock windrower drum is 14 feet (4.27 M) wide and is constructed of 8 5/8 inch (219mm) heavy wall HSS tube.
• Hard surfaced, 5/8 inch (15.9mm) x 6 inch thick x 6 inch (152.4mm) long teeth are welded directly to the drum pipe, resulting in problem-free operation even in difficult conditions.

• #100 drive chain

• Weight (approximate) 3500 lbs. (1588 kg)

• Hydraulic flow 15 GPM (57 LPM) Minimum

• Drum Width 14 ft. (4270 mm)

• Maximum Ground Speed 5 mph (8 kph)

• Recommended Ground Speed 2mph (3 kph)

• Drum Speed 117 rpm @ 540 rpm input

• Tires 9.5 L - 15, 6 ply

• Transport Width 93” (2.36 M)

• Transport Length 235” (5.97 M)
