Grain Analysis

Perten Inframatic 9500 Grain Protein Tester

Product Information

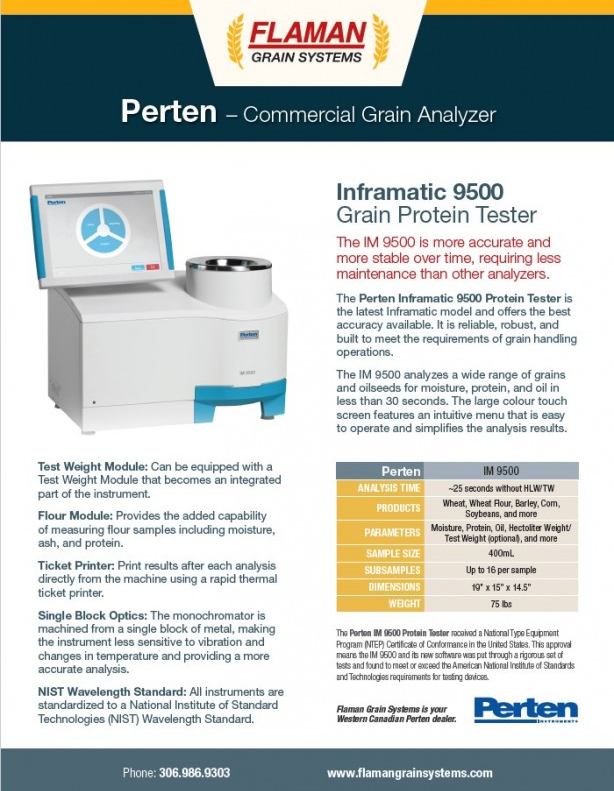

Brochure

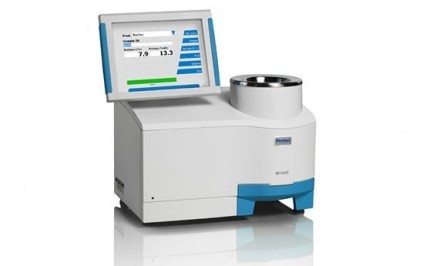

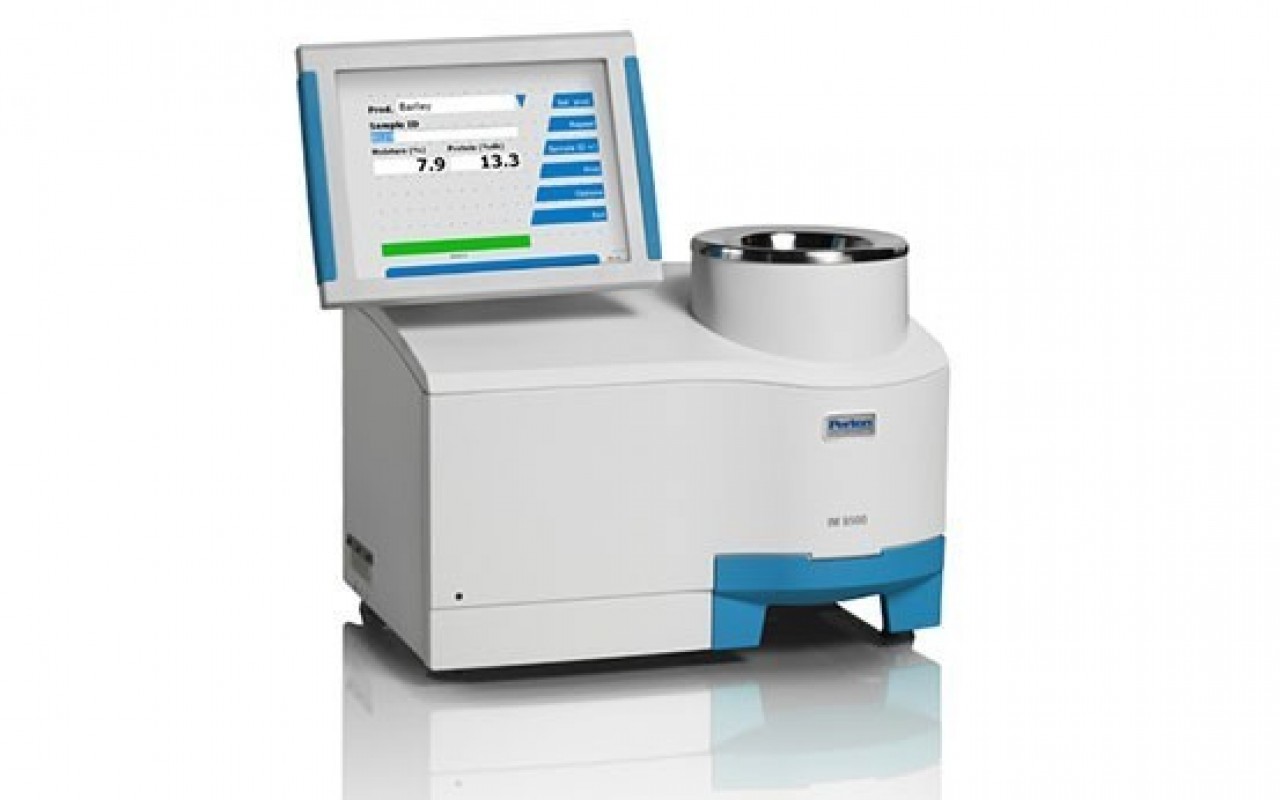

The Perten Inframatic 9500 Protein Tester is the latest Inframatic model and offers the best accuracy available. It is reliable, robust, and built to meet the requirements of grain handling operations.

The IM 9500 analyzes a wide range of grains and oilseeds for moisture, protein, and oil in less than 30 seconds. It is more accurate and more stable over time, so it requires less maintenance than other analyzers. The large colour touchscreen features an intuitive menu that is easy to operate and simplifies the analysis results.

Features

Measures moisture, protein, oil, ash, specific weight and more in less than 1
Flour Module

^Back to top

Extra Information

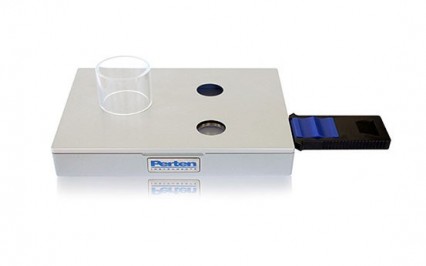

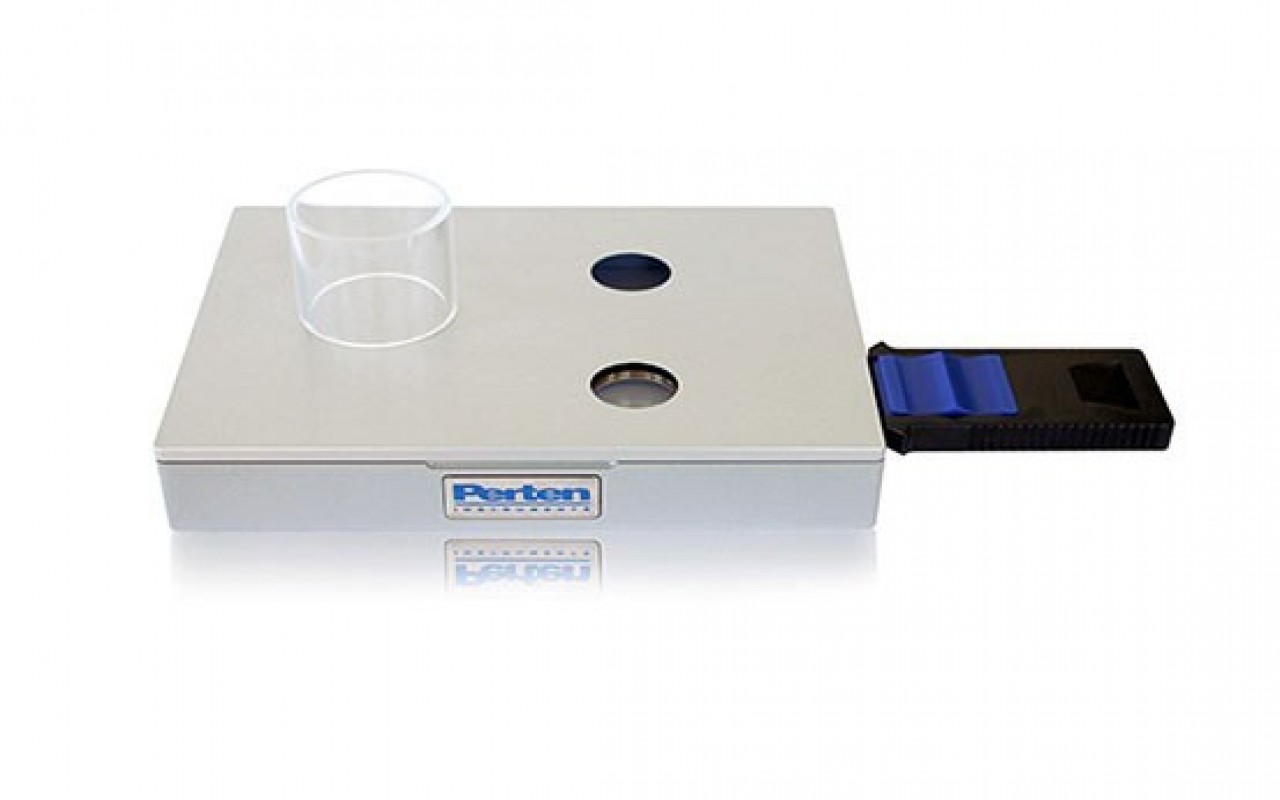

Test Weight Module: Can be equipped with a Test Weight Module that becomes an integrated part of the instrument.

Flour Module: Provides the added capability of measuring flour samples including moisture, ash, and protein.

Ticket Printer: Print results after each analysis directly from the machine using a rapid thermal ticket printer.

Single Block Optics: The monochromator is machined from a single block of metal, making the instrument less sensitive to vibration and changes in temperature and providing a more accurate analysis.

^Back to top

Specs


Analysis Time	~25 seconds
Products	Wheat, Wheat Flour, Barley, Corn, Soybeans, and more
Parameters	Moisture, Protein, Oil, Hectoliter Weight/Test Weight (optional), and more
Sample Size	400 mL
Subsamples	Up to 16 per sample
Dimensions	19" x 15" x 14.5"
Weight	75 lbs
Usage	Commercial use

^Back to top
