Schulte FLX-1510 Mower Flex Arm

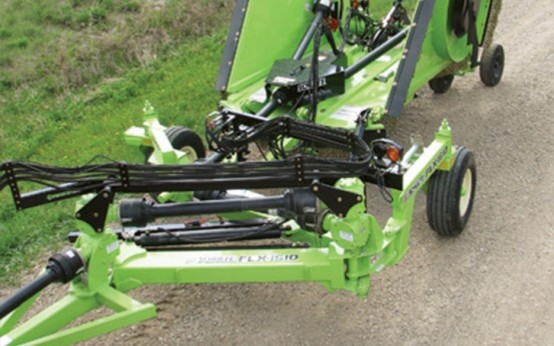

FLX-1510 Mower Flex Arm

Product Information

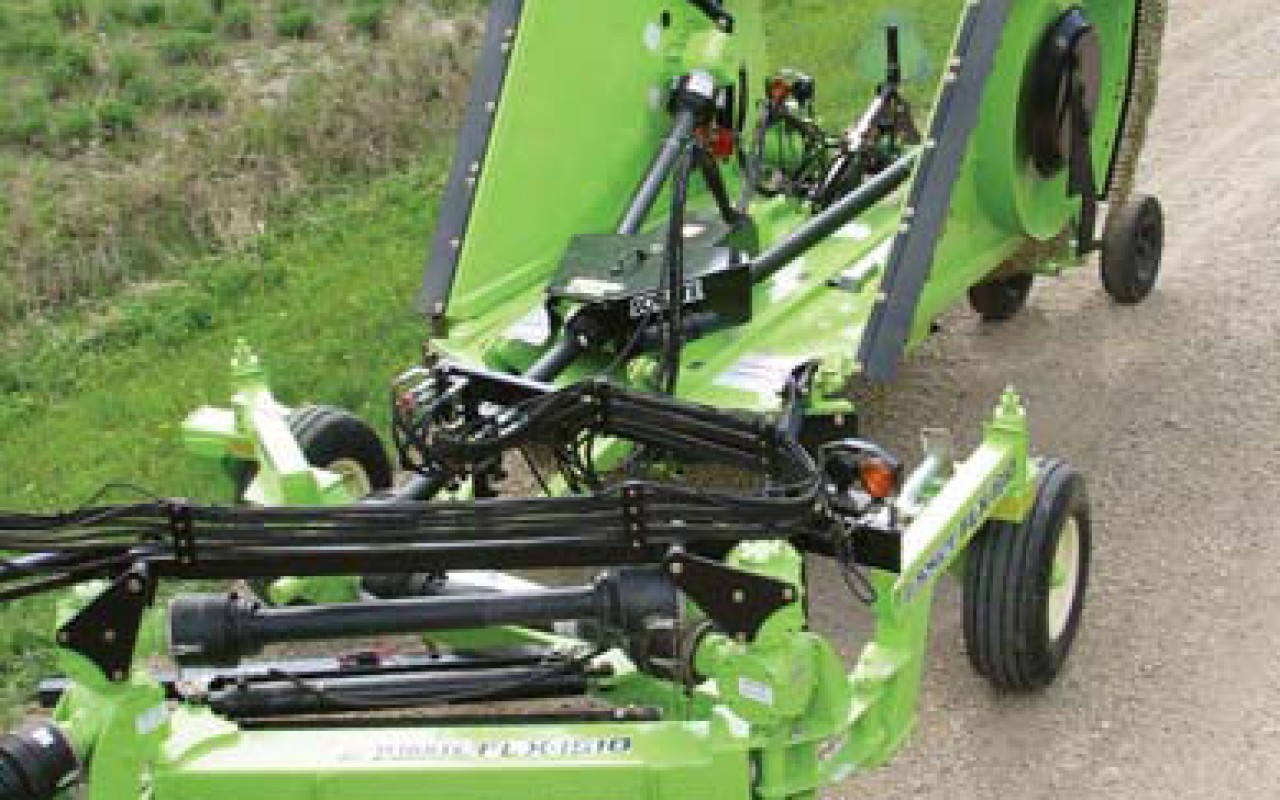

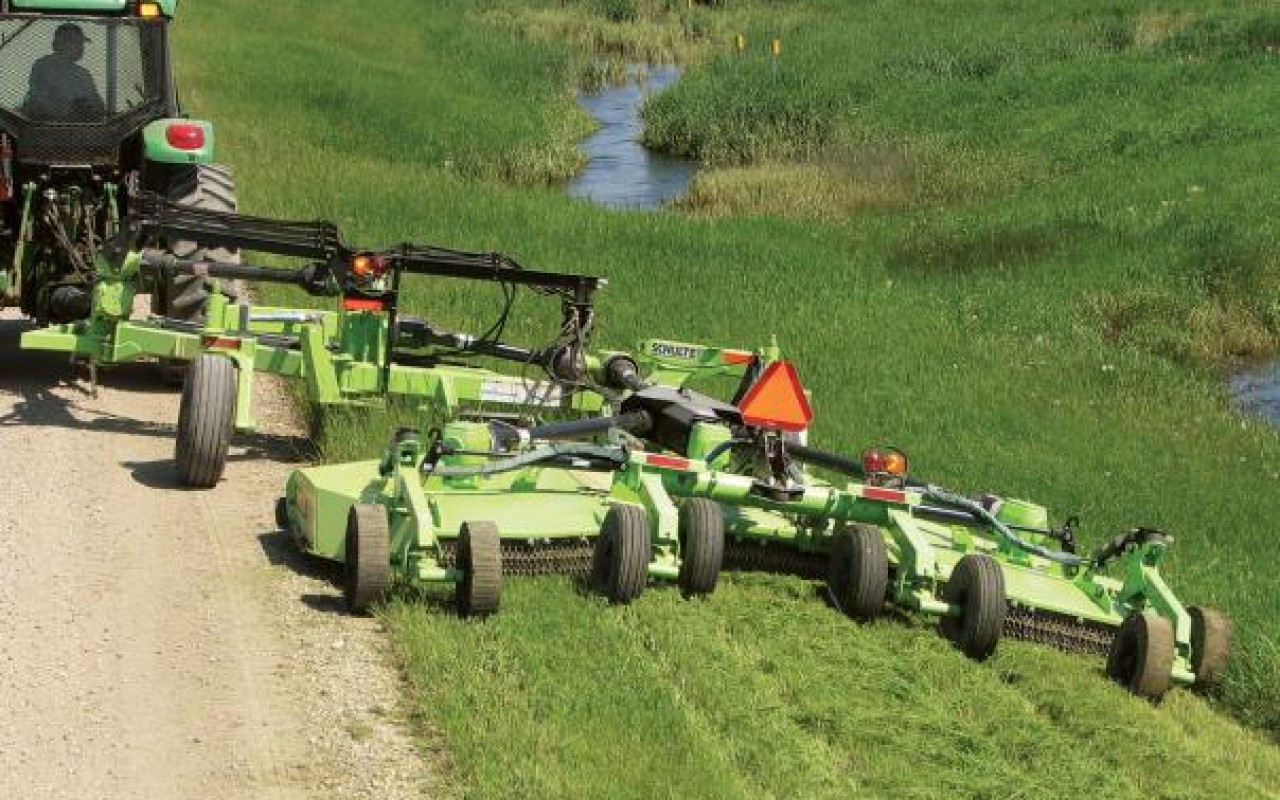

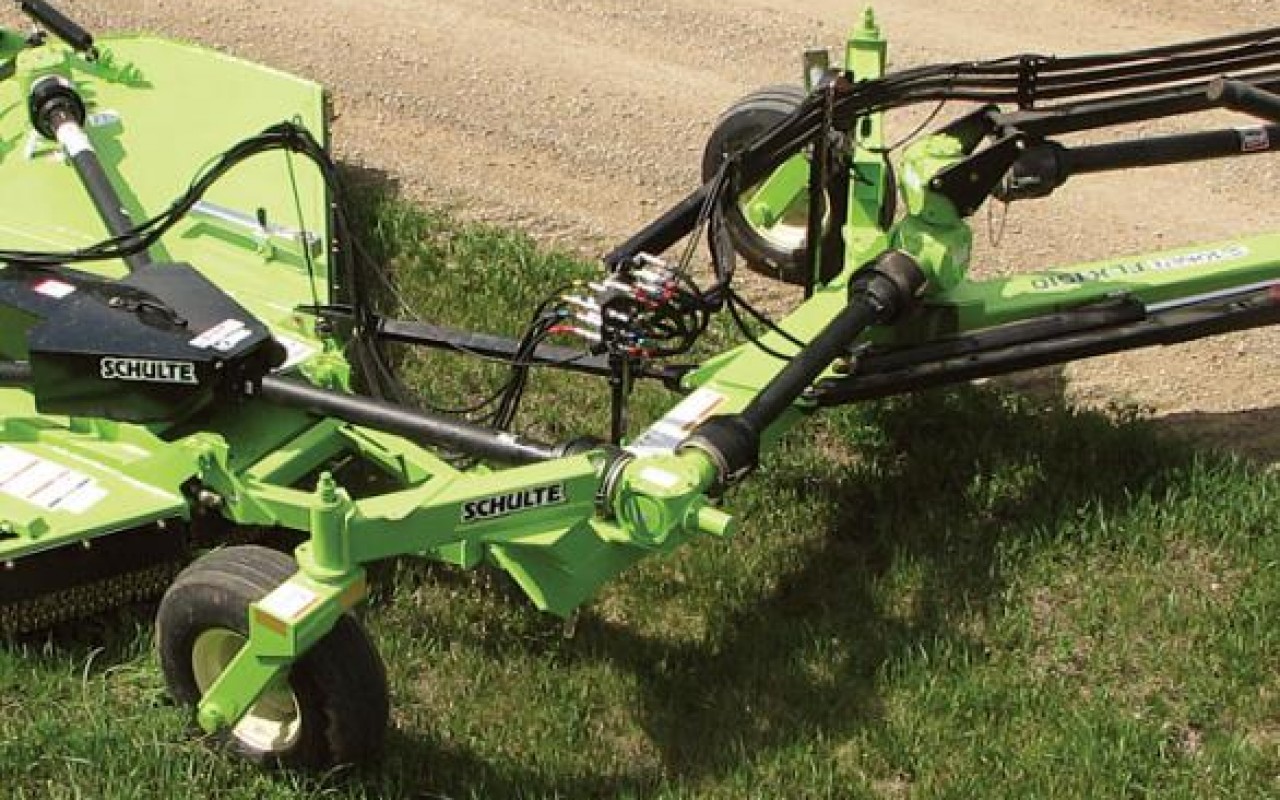

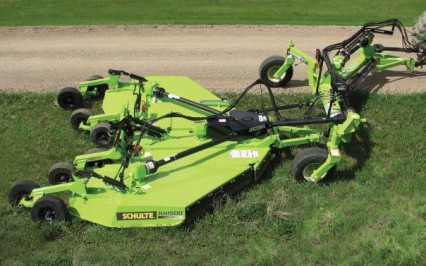

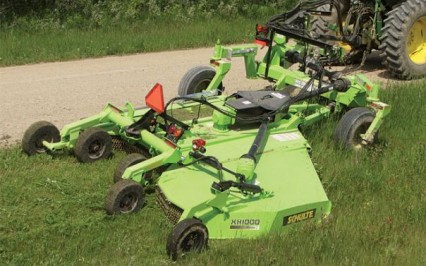

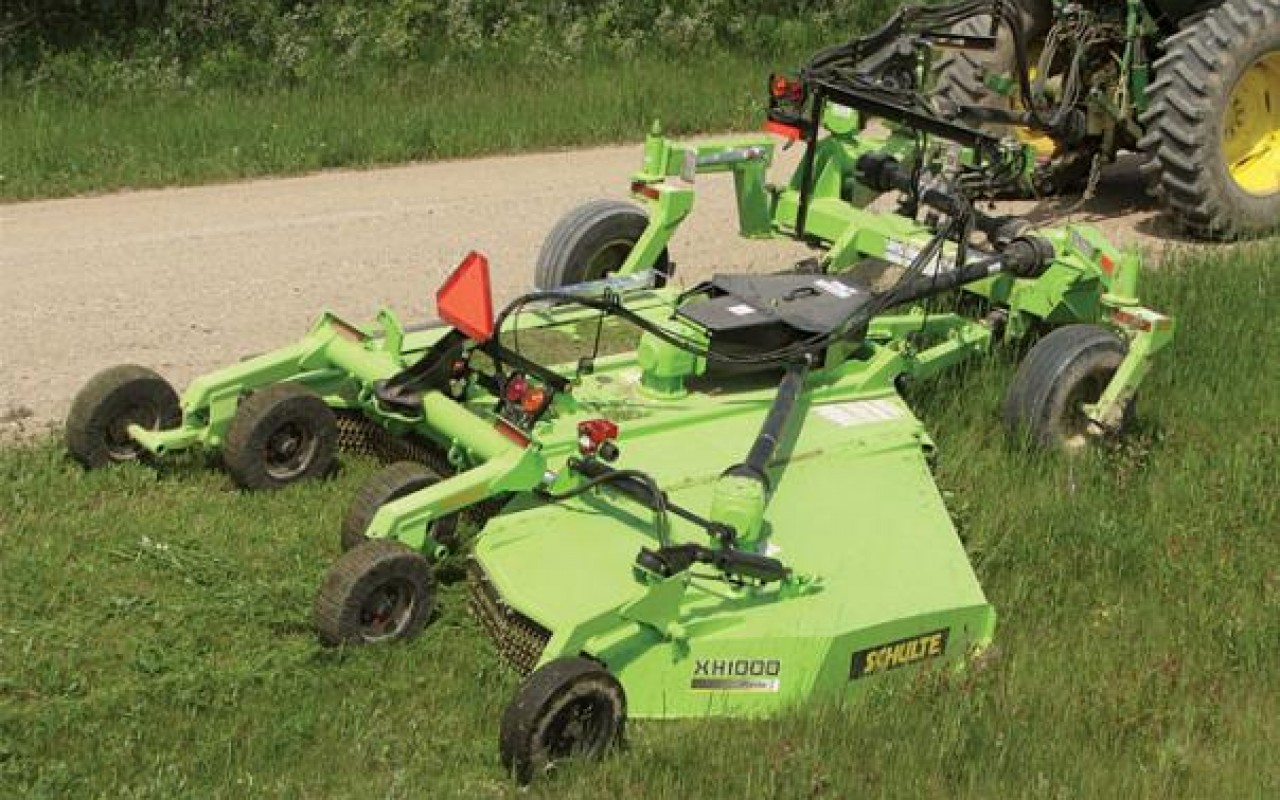

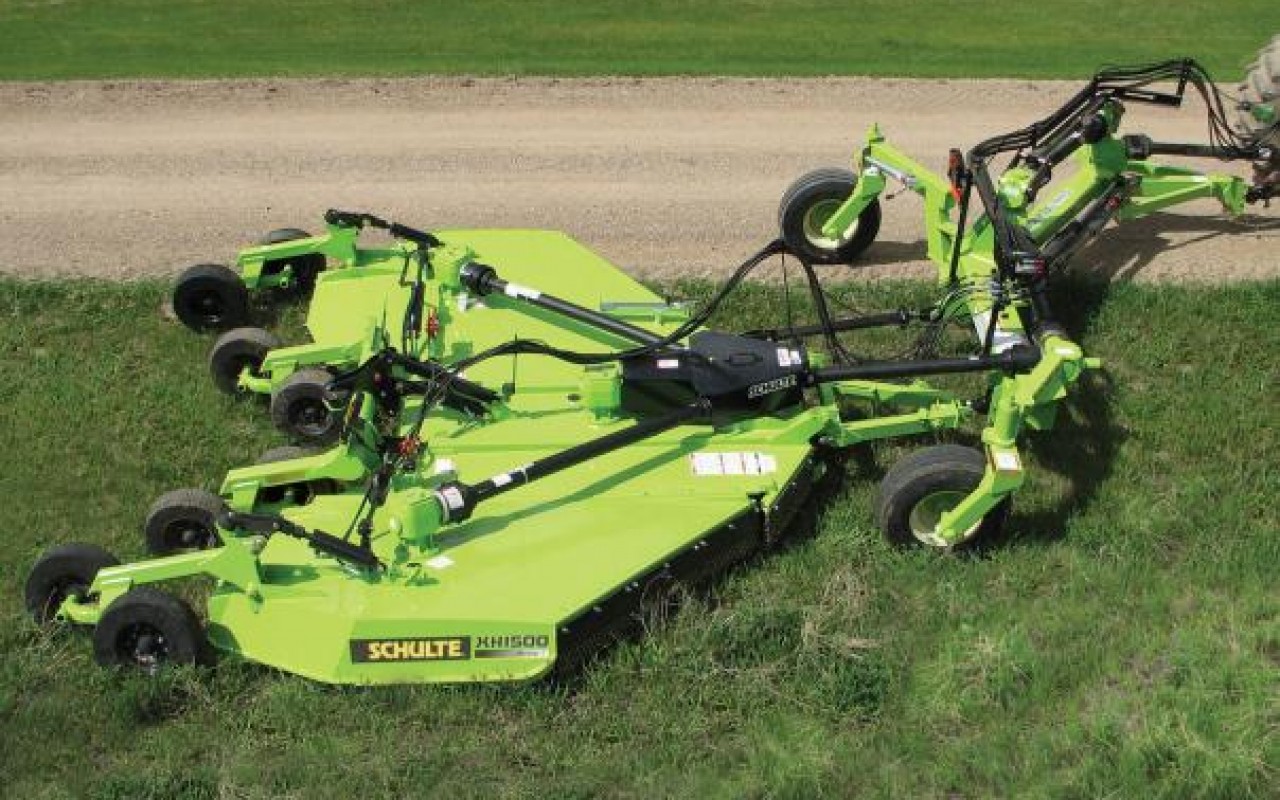

The Schulte FLX-1510 Flex Arm allows the operator to travel on the road while his Schulte 10' or 15' rotary cutter cuts the ditch slope. Visibility is improved, and operator comfort and safety are both greatly increased. Maneuverability, especially when backing up is much better than competitive machines. A parallel link system ensures that the front hitch section is always parallel to the rotary cutter allowing for tight turns both in working and in transport positions.

Contact Us Quote Request Similar Inventory


Features

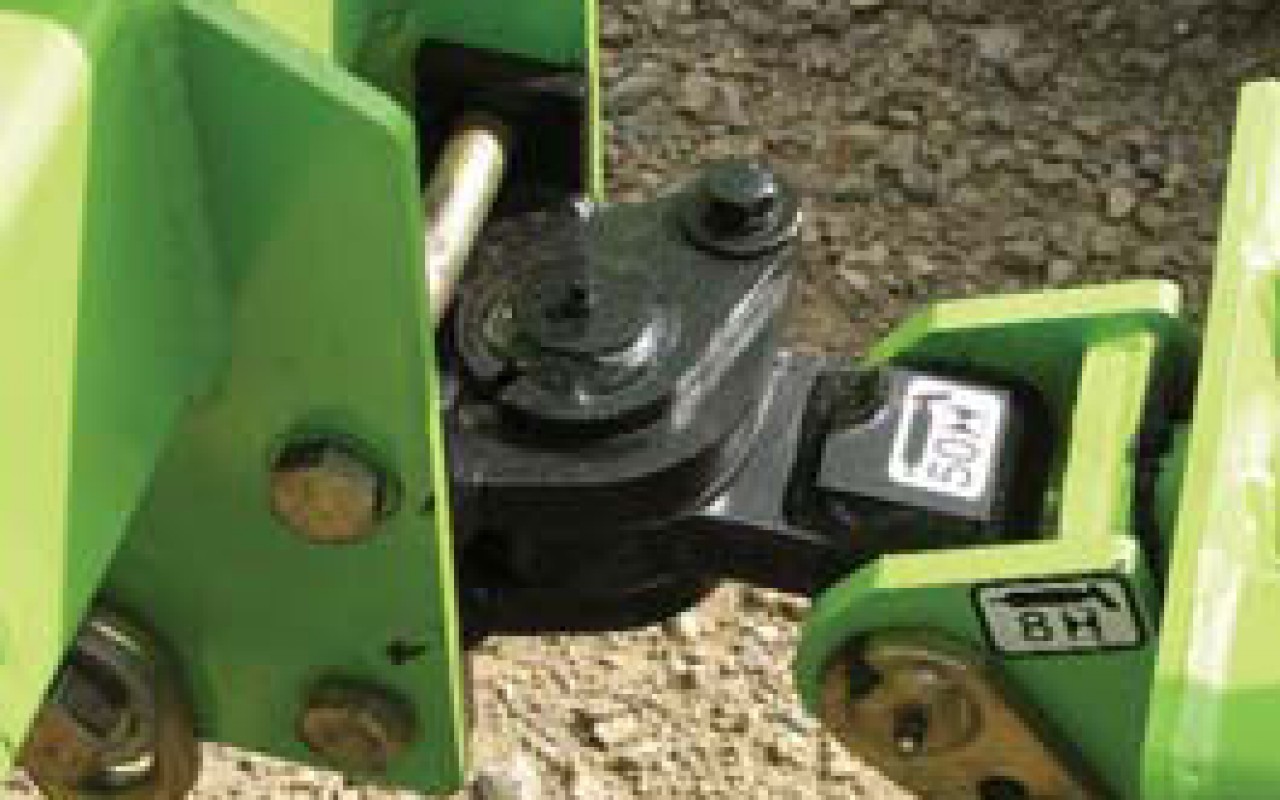

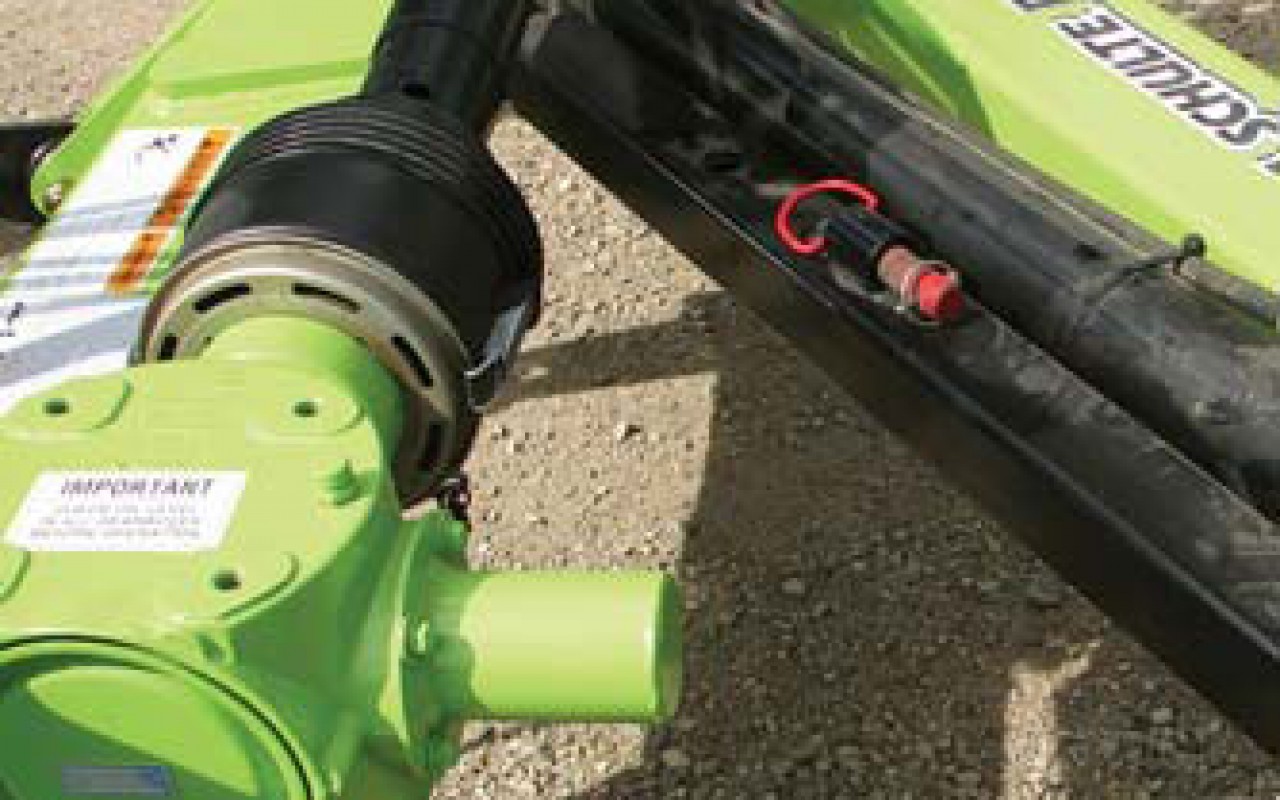

  • Gearboxes

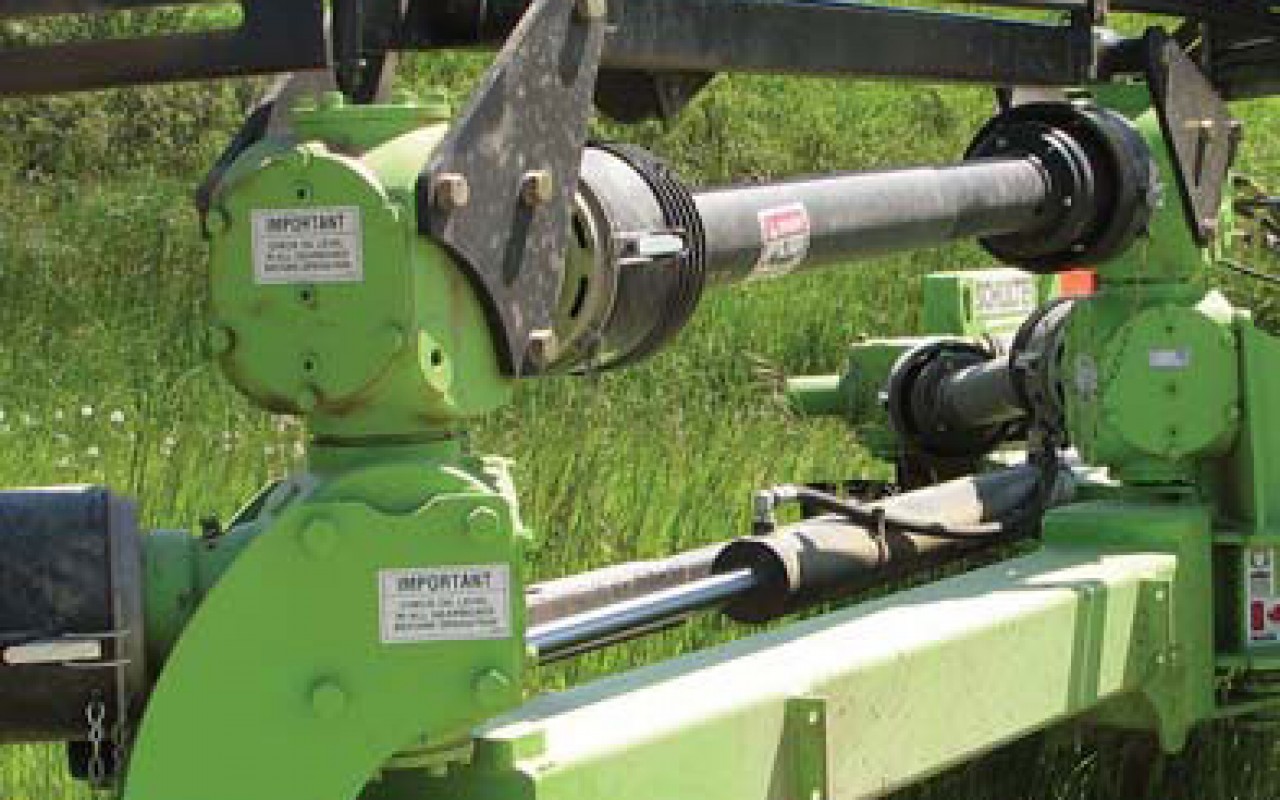

    Gearboxes

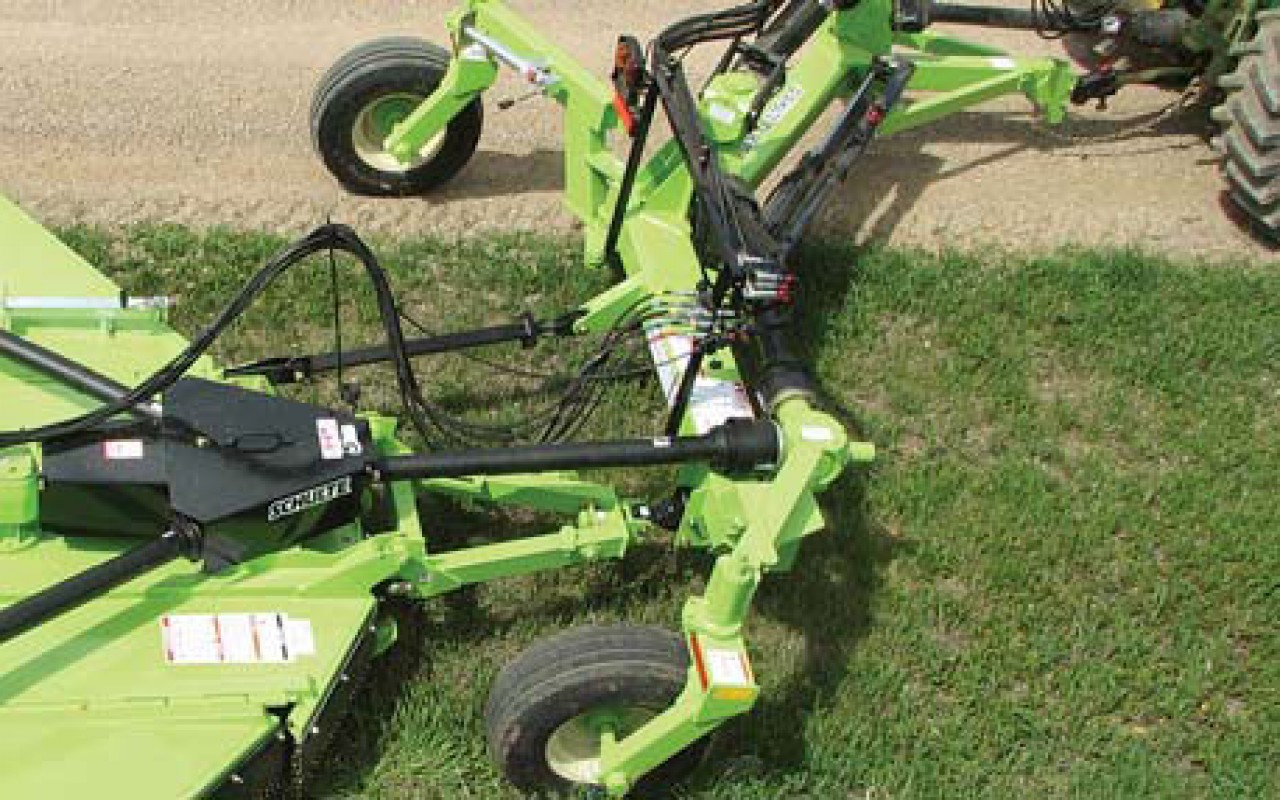

  • Offset Arm

    Offset Arm

  • Higher Clearance

    Higher Clearance

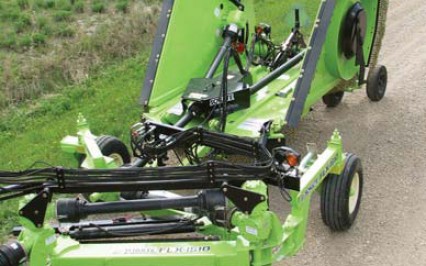

  • Narrow Transport Width

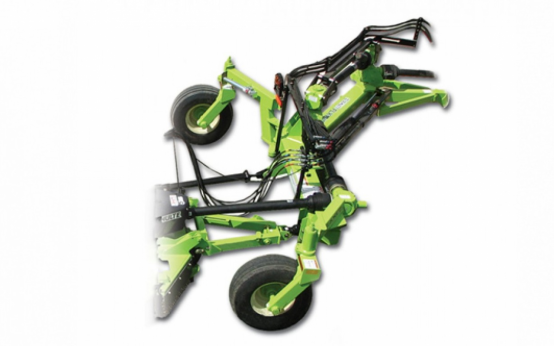

    Narrow Transport Width

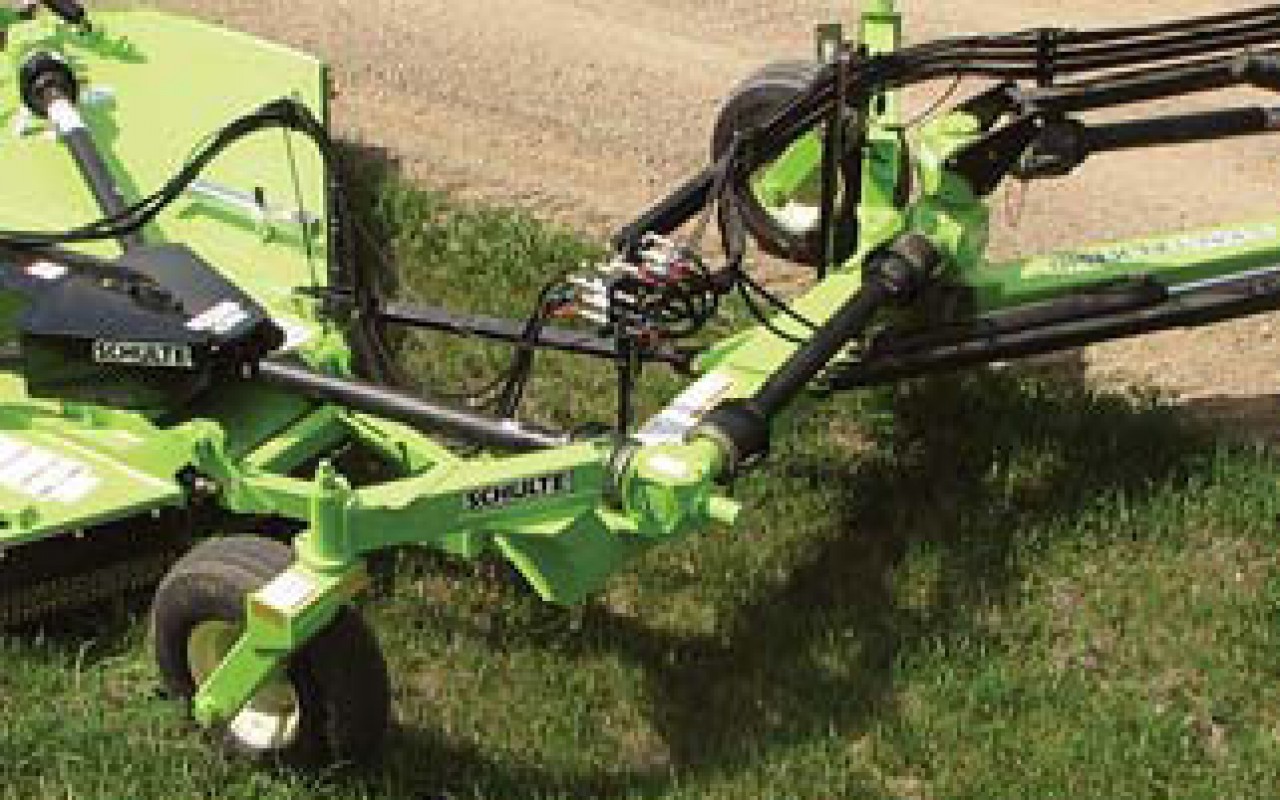

  • Precision Hitch Mounting

    Precision Hitch Mounting

  • Transport Lock

    Transport Lock

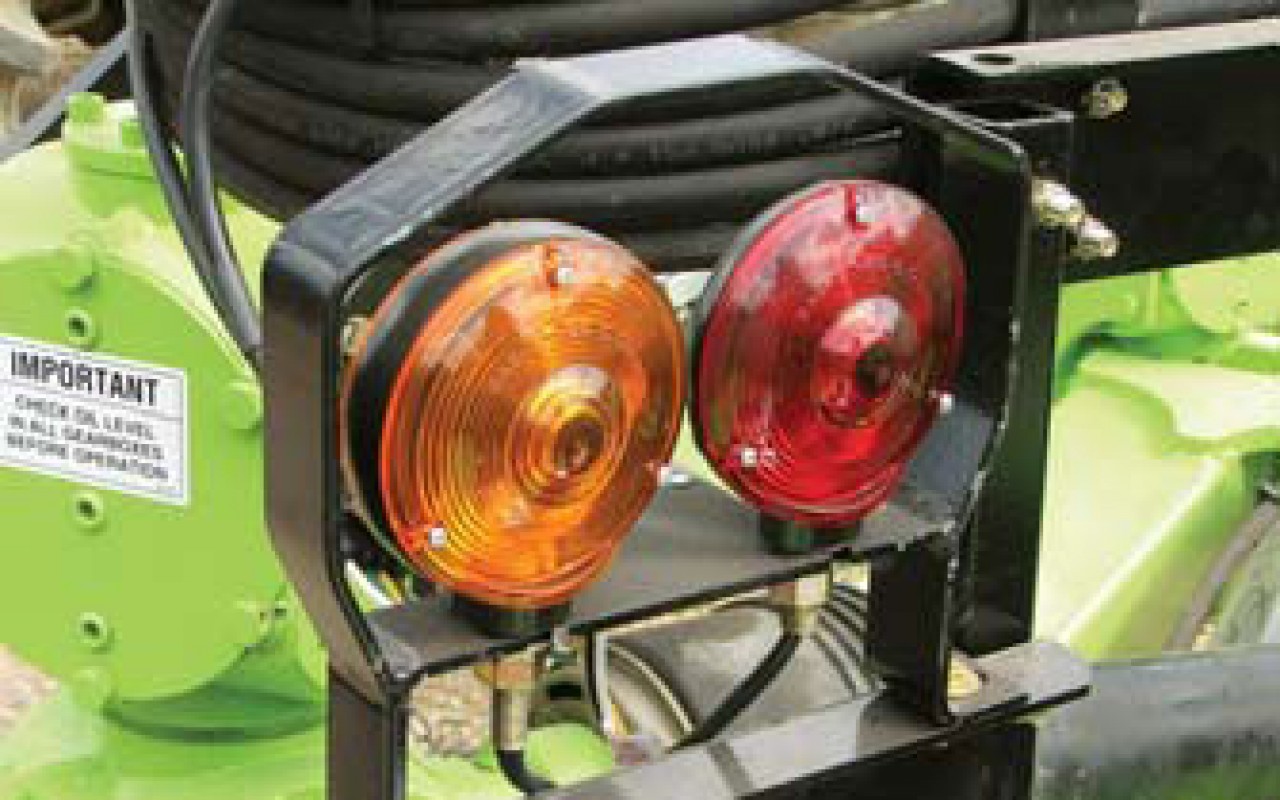

  • Safety Lights

    Safety Lights

  • Adjustable Clevis HItch & Tow Chain

    Adjustable Clevis HItch & Tow Chain



Options

  • Selector Valve for Limited Hydraulics

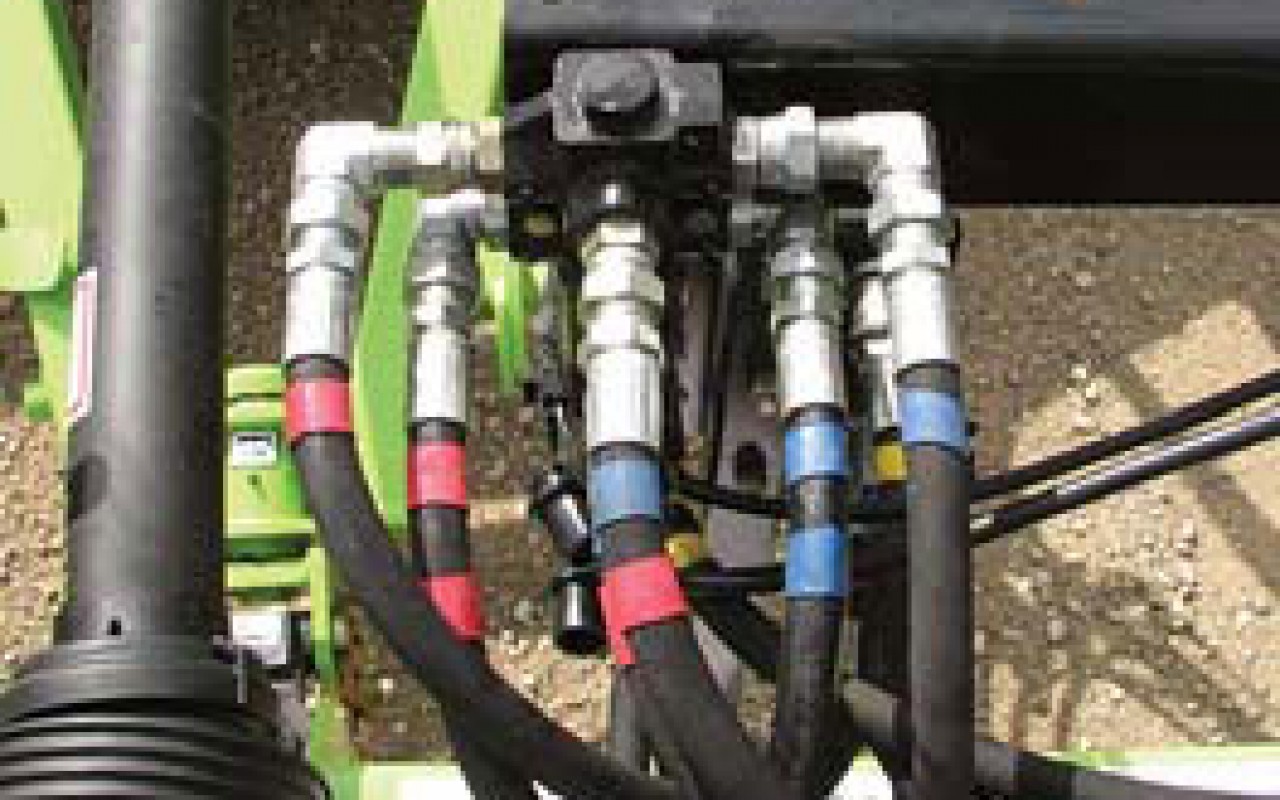

    Selector Valve for Limited Hydraulics

  • Flex Arm Mount for Cutter

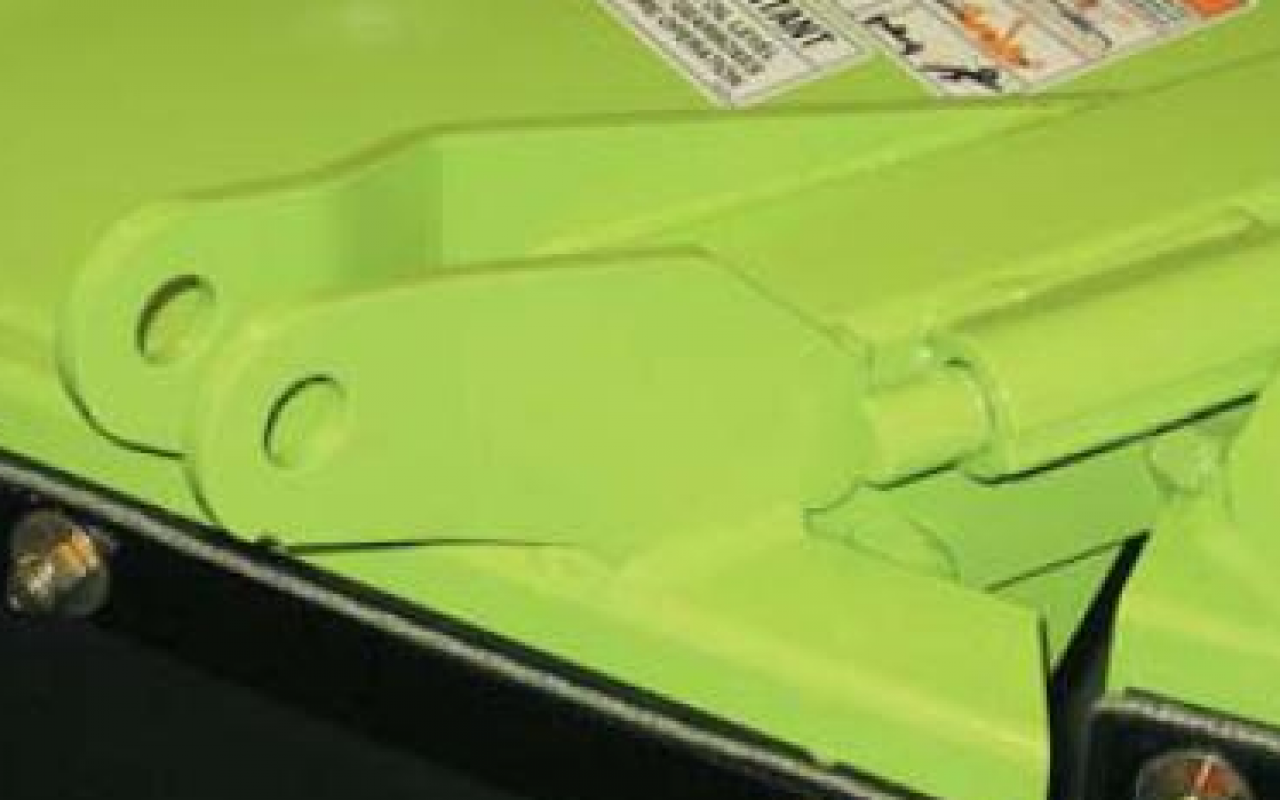

    Flex Arm Mount for Cutter



Extra Information

  • 6000lb Capacity with 6 bolt hubs
  • Hardened pins at major pivot points
  • Bolt-in replaceable axles
  • Easily detachable from the cutter
  • Accommodates 540 or 1000 RPM delivery from the tractor
  • Optional 6 port selector valve kit for independent wing action

“I have just received our new FLX1510 flex arm and XH1500 Series 3 mower in the spring of 2011. I really liked how smooth the FLX-1510 Flex arm and XH1500 mower runs. There is no vibration, even when cutting directly behind the tractor. Also there is no side draft like the competitive unit we had before, which had worn a set of tires off the tractor in two seasons from the hard side pull.  The Schulte mowers are well built and durable without being excessively heavy. They use bearings and bushings at all the wear points. The flex arm and mower take way less horsepower to operate effectively verses their past competitive unit.” Gerard Palaschuk (Lipton SK)

See all rough cut mower-> click here



Specs

Capacity 4000 lbs
Tires HD 11L x 15, 2 ply
Hub 6000 lb 6 Bolt
Hydraulic Cylinder HD 3-1/2 x 36 Welded
Weight 2557 lbs
Power Rating 200 HP at 1000 RPM
Arm & Rotary Cutter Width 70" to left and 52" to right (121" total)
Arm Transport 70" to left and 47" to right (117" total)
Arm & Rotary w/ Stop Block Width 55" to left and 66" to right
