From start to finish. We have it handled. We specialize in full-solution grain handling setups, including a wide range of bucket elevators and conveyors. Our turnkey offering includes Grain Dryer Systems, Grain Cleaning and Processing Plants, Automated Bin Sites, and Producer Loading Sites.
Contact Us Quote Request Similar InventoryExtra Information

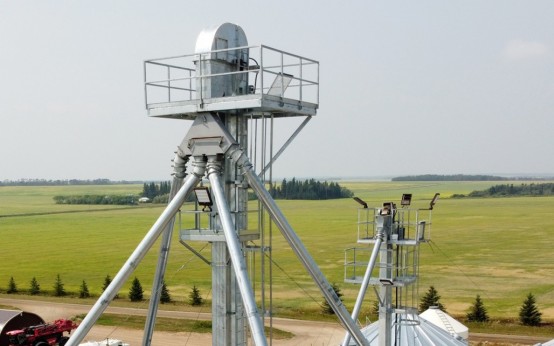

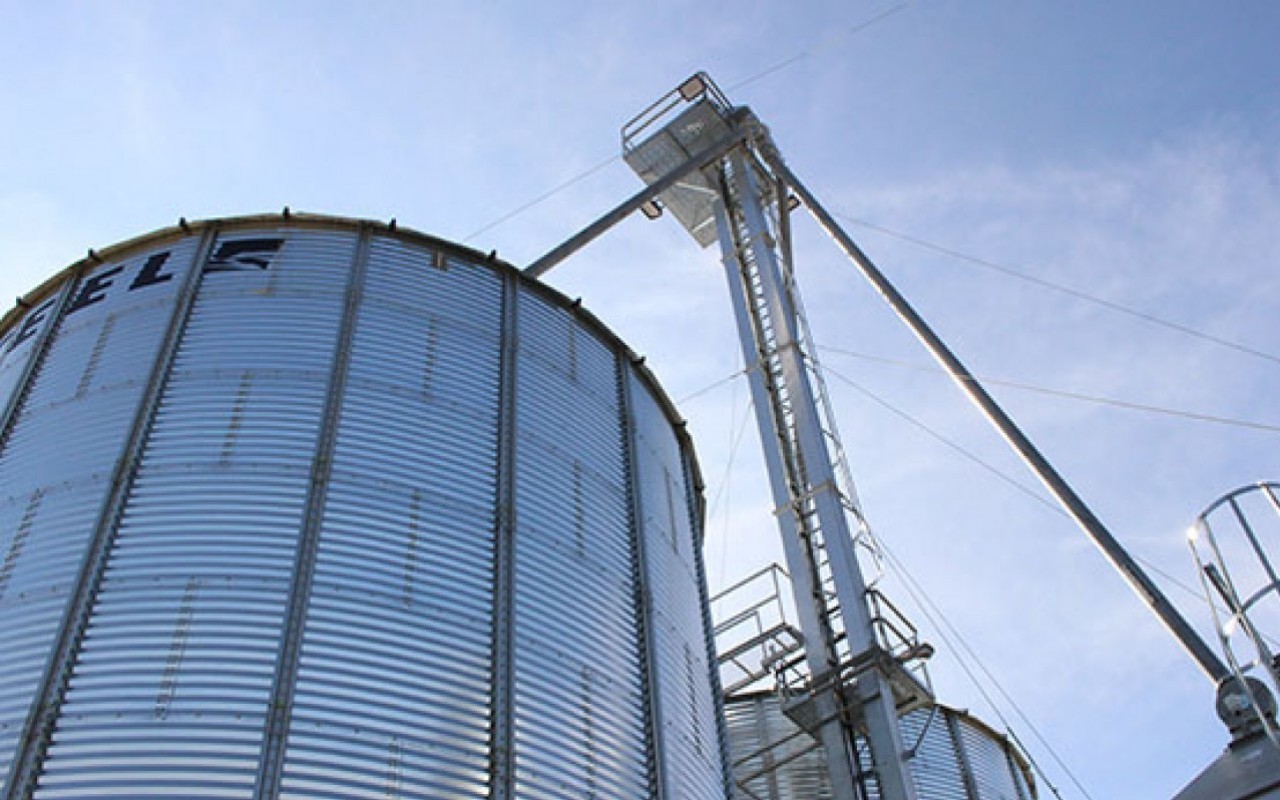

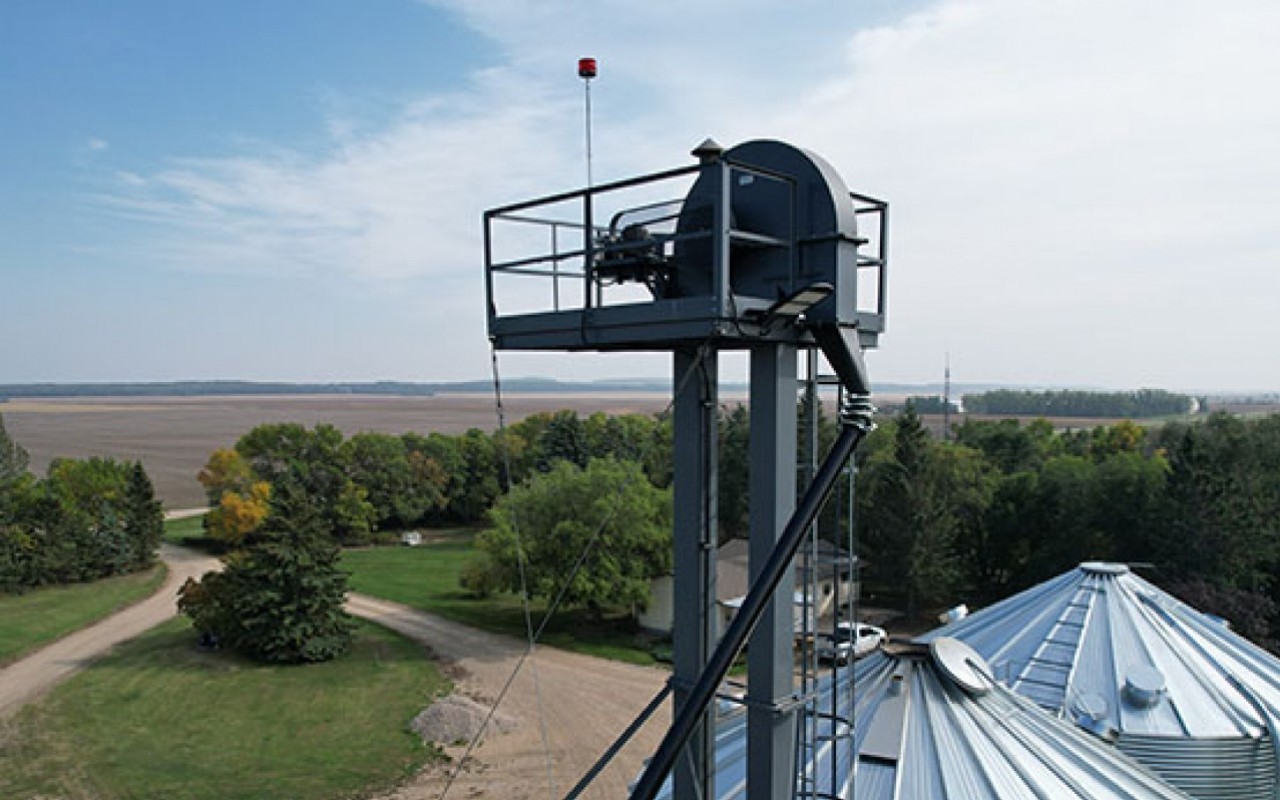

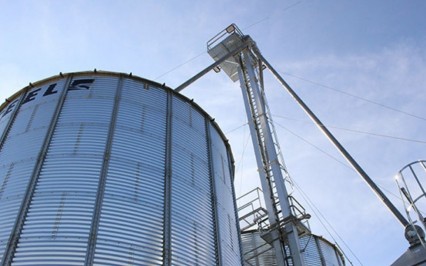

Bucket Elevators Capacity up to 20,000 BPH. We offer a wide range of models to ensure we match a bucket elevator that is right for your operation.
Elevator Head
- Curved design for minimal product impact
- Two-piece hood design for interior access
- Shaft seals for dust & weather protection
- Static conductive, oil resistant & fire retardant drum pulley (SCOFR)
- Inspection ports for belt tracking
- Shaft-mounted DODGE gearbox
- Double or triple ply SCOFR Goodyear belting
- Optional
- Liner packages (incl: UHMW and tile) for abrasive use
Elevator Boot
- Winged “easy clean” pulley
- Easy-access clean-out doors (16” pulley & larger)
- Externally mounted block bearings
- Shaft seals for weather/dust protection
- Threaded rod belt adjustment
- Optional
- Up-Leg or Down-Leg boot hoppers
- Flanged boot hoppers
Elevator Trunking
- Curved design for minimal product impact
- Double legged trunking design
- 14ga, 12ga and 10 ga available (size dependent)
- Laser-cut Flanges (to ensure hole pattern alignment)
- Trunking seams are track welded for strength and dust/weather protection.
- Connector plates included with each section to ensure simple installation.
- Service trunking has inspection ports for easy access to belting and buckets
