Product Information

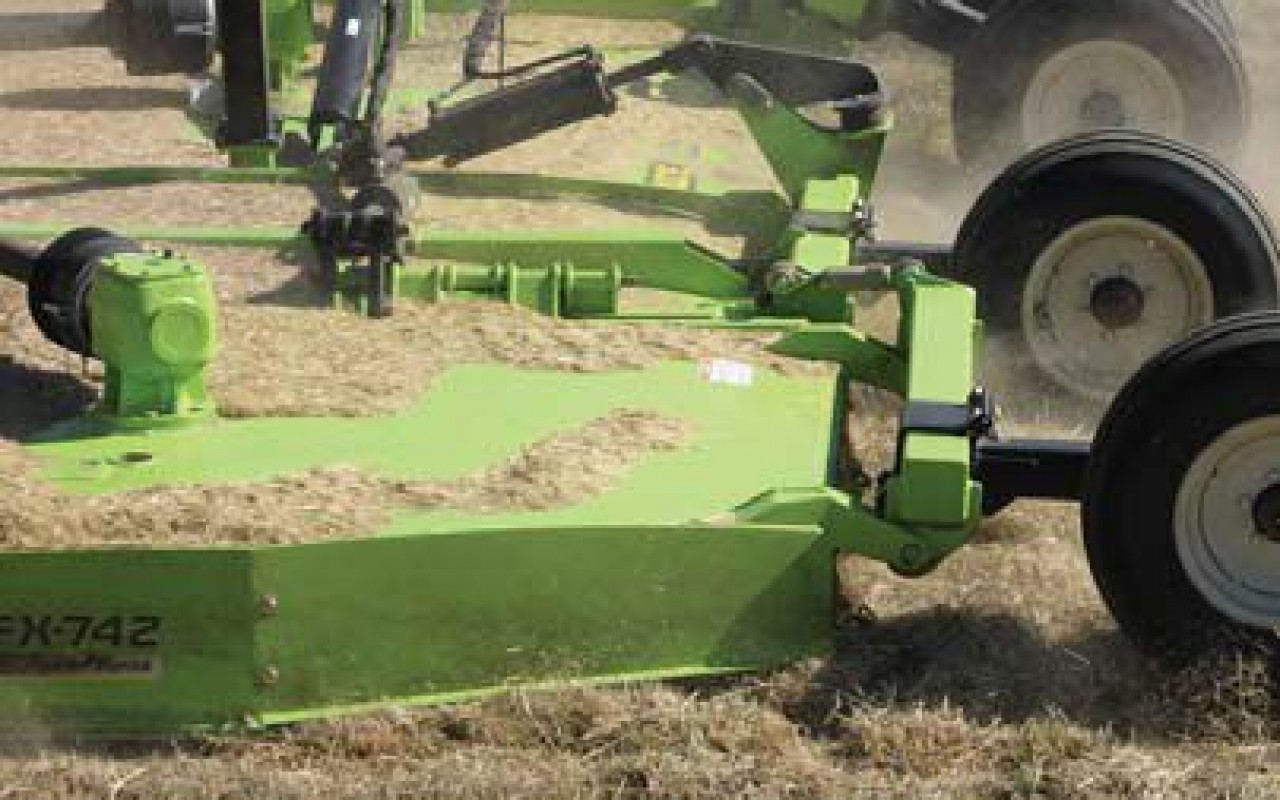

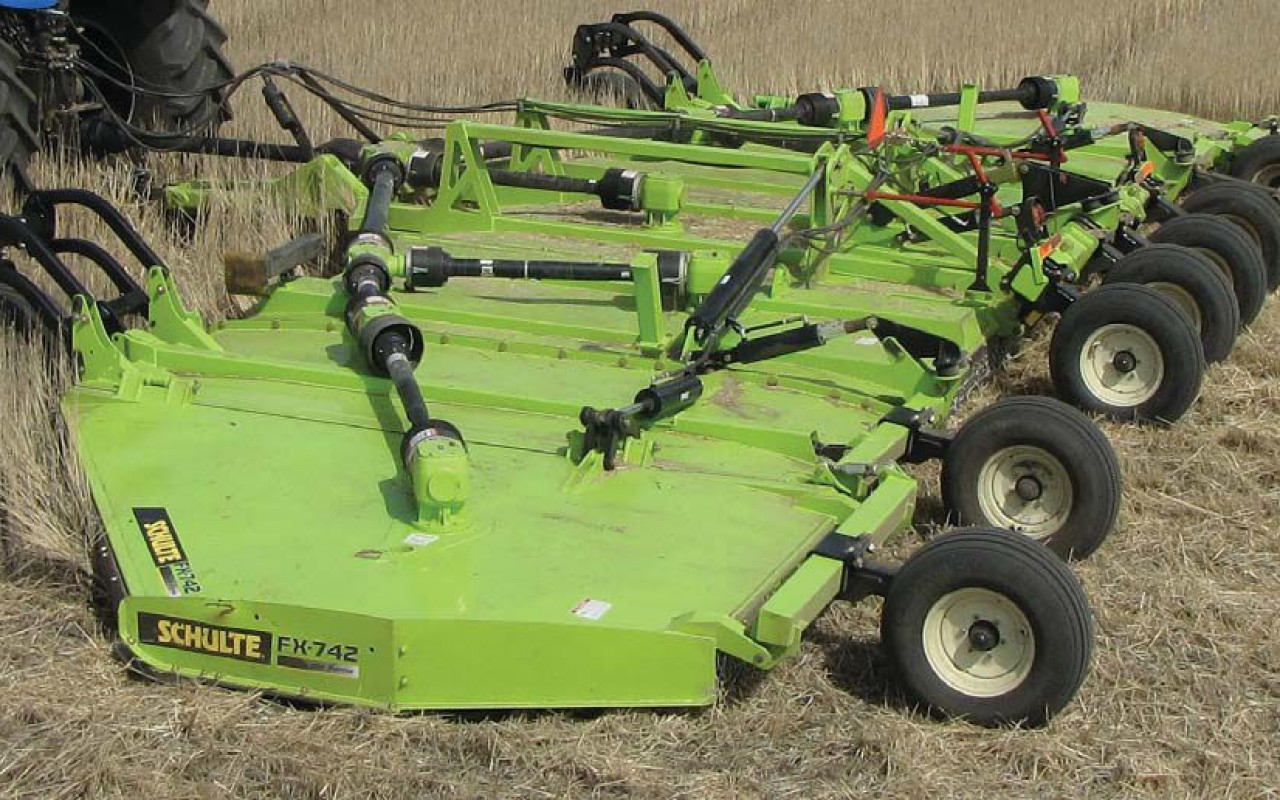

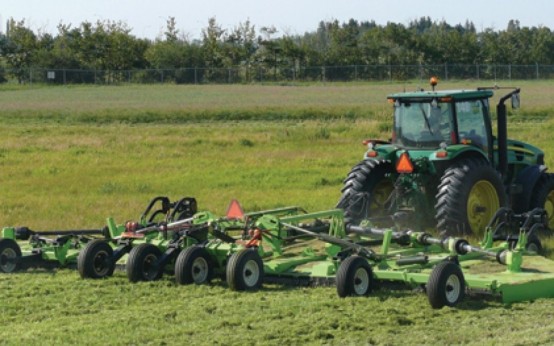

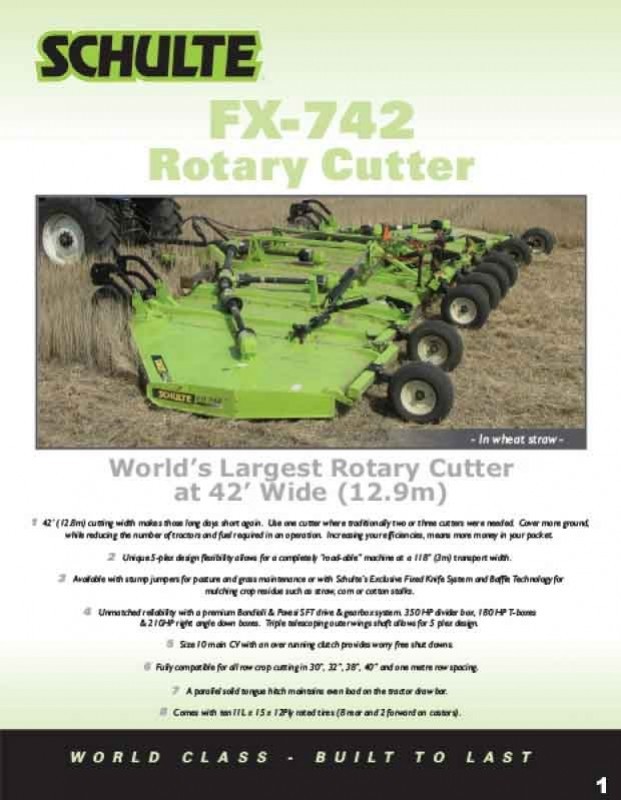

Get the world’s largest rotary cutter at 42’ wide. The Schulte FX 742 uses one cutter where traditionally two or three cutters are needed. Cover more ground, while reducing the number of tractors and fuel required in an operation. Increasing your efficiencies means more money in your pocket.

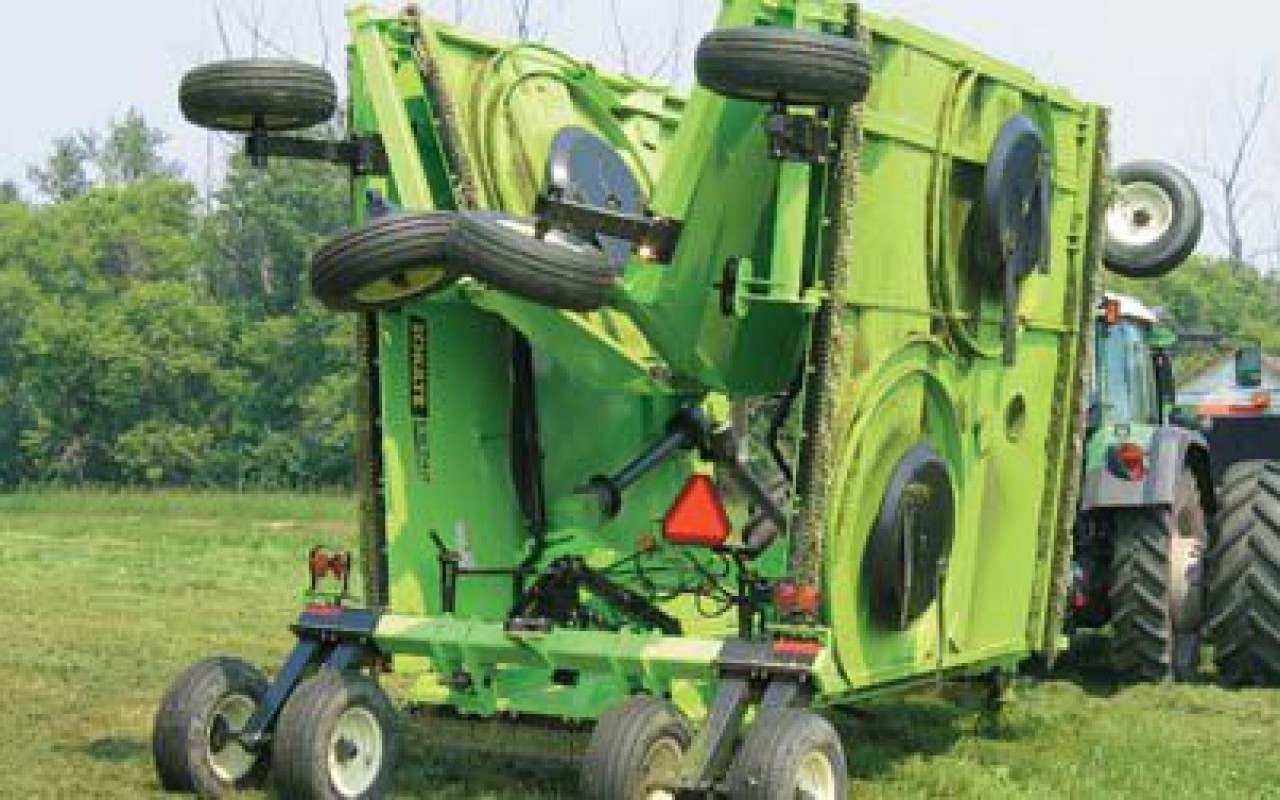

Unique 5-plex design flexibility allows for a complete roadworthy machine at a 118” (3m) transport width.
See all rough cut mowers -> click here
Contact Us Quote Request Similar InventoryFeatures
-

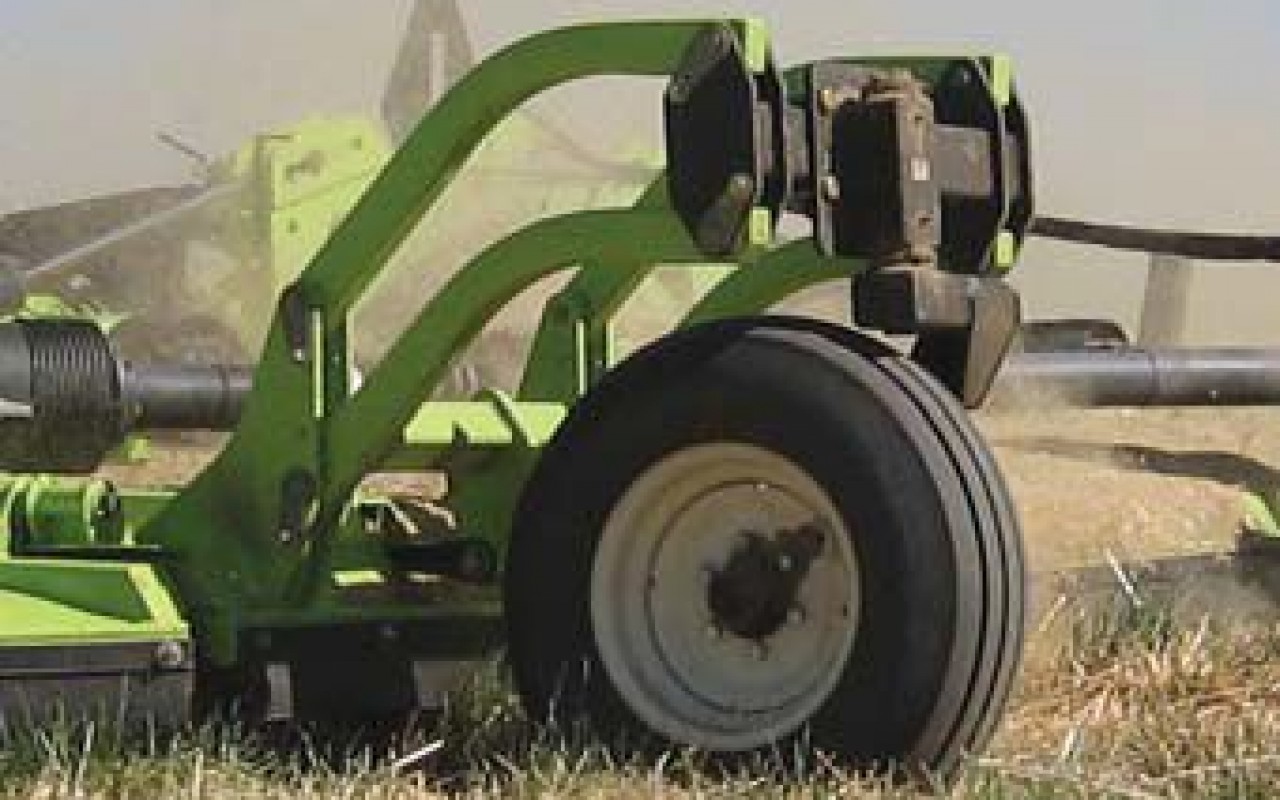

Adjustable wheel standards
-

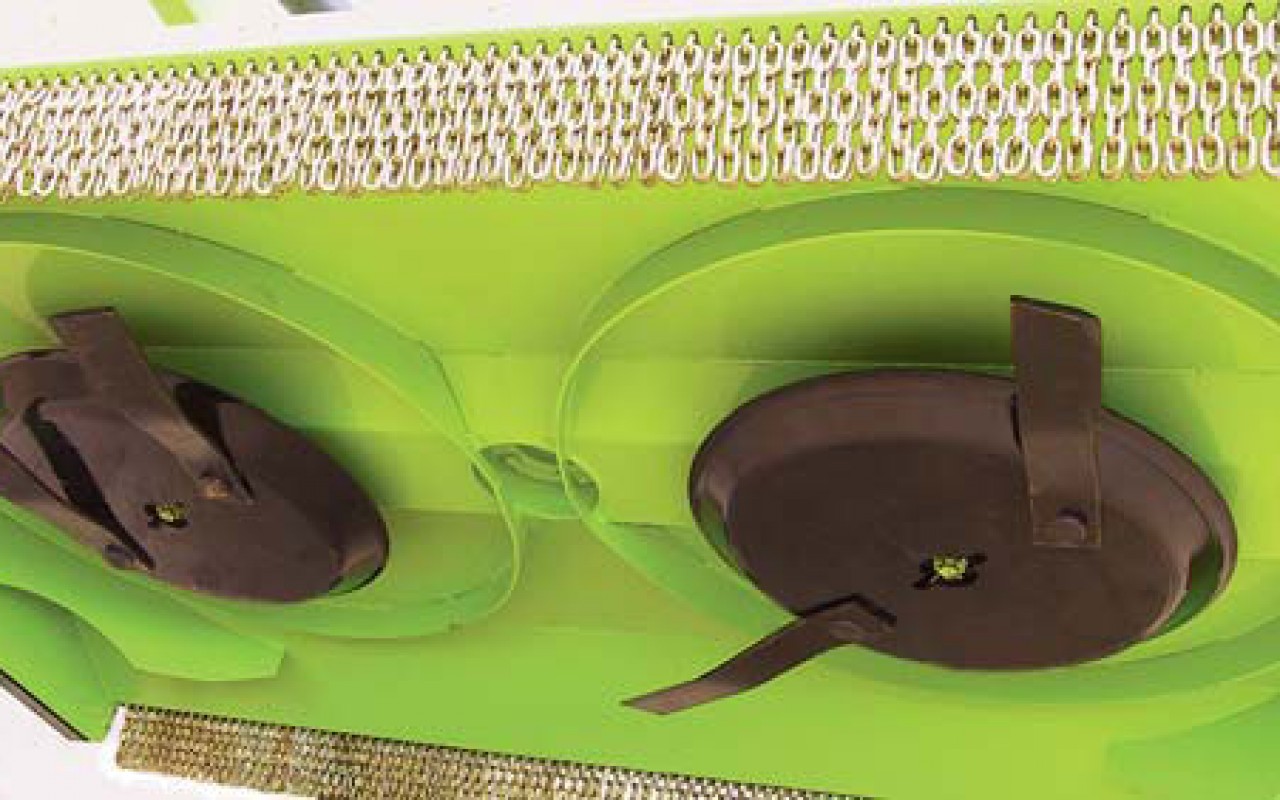

Deck protection rings
-

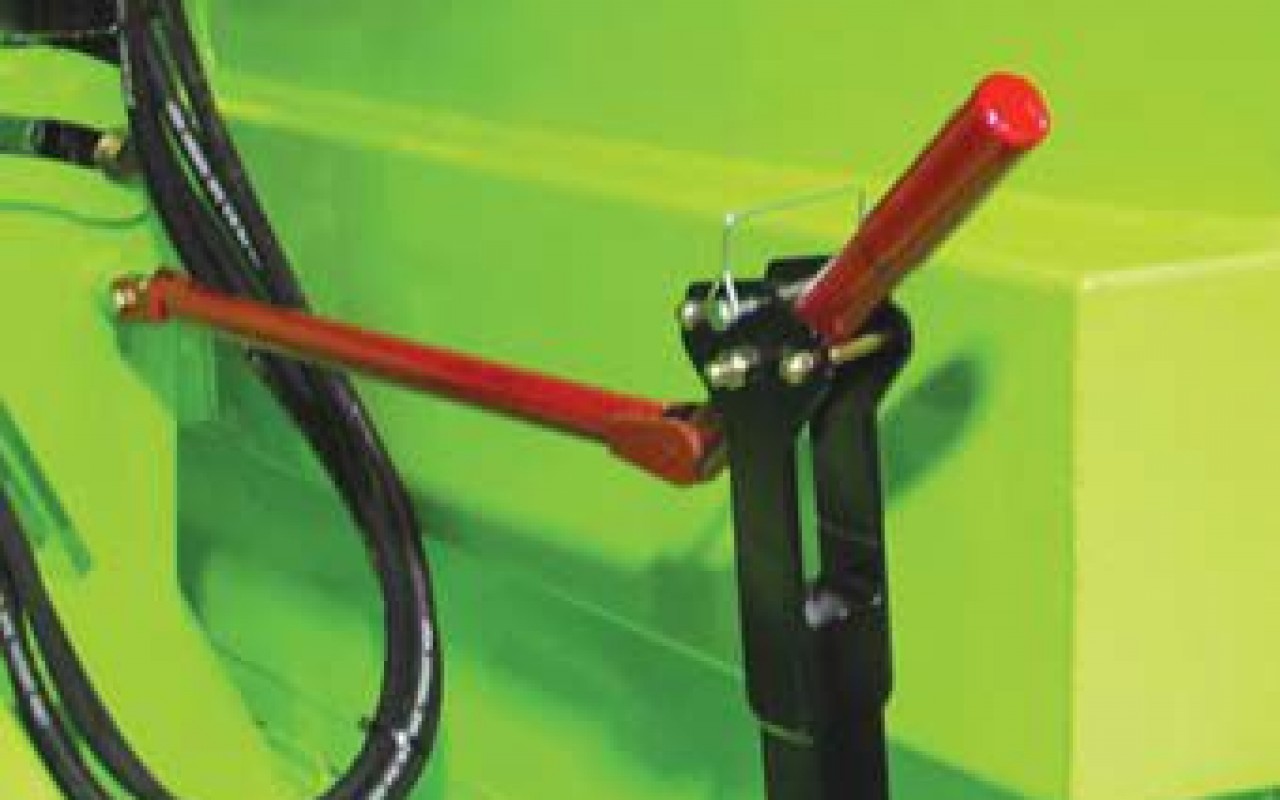

Easy to use safety lock up
-
Parallel solid tongue hitch
-
Rubber grommet suspension
-

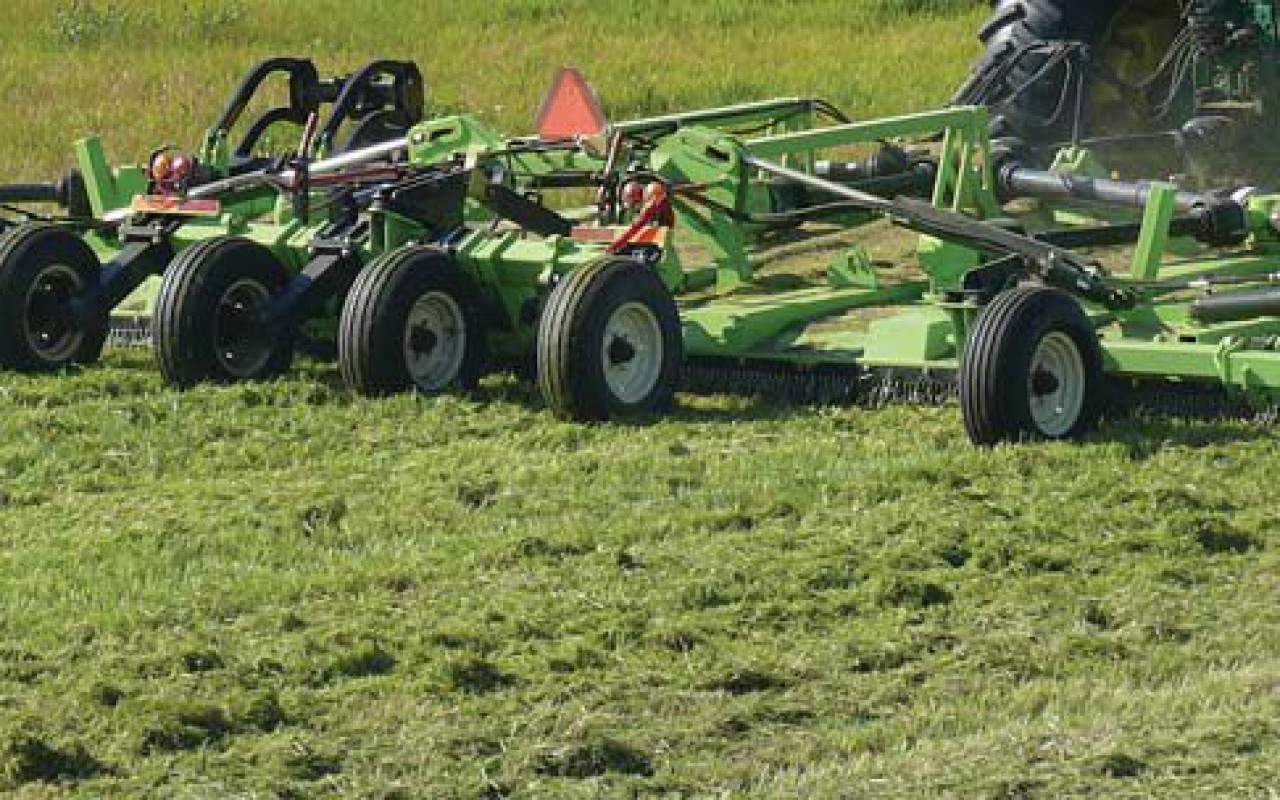

Adjustable front castor wheels
-

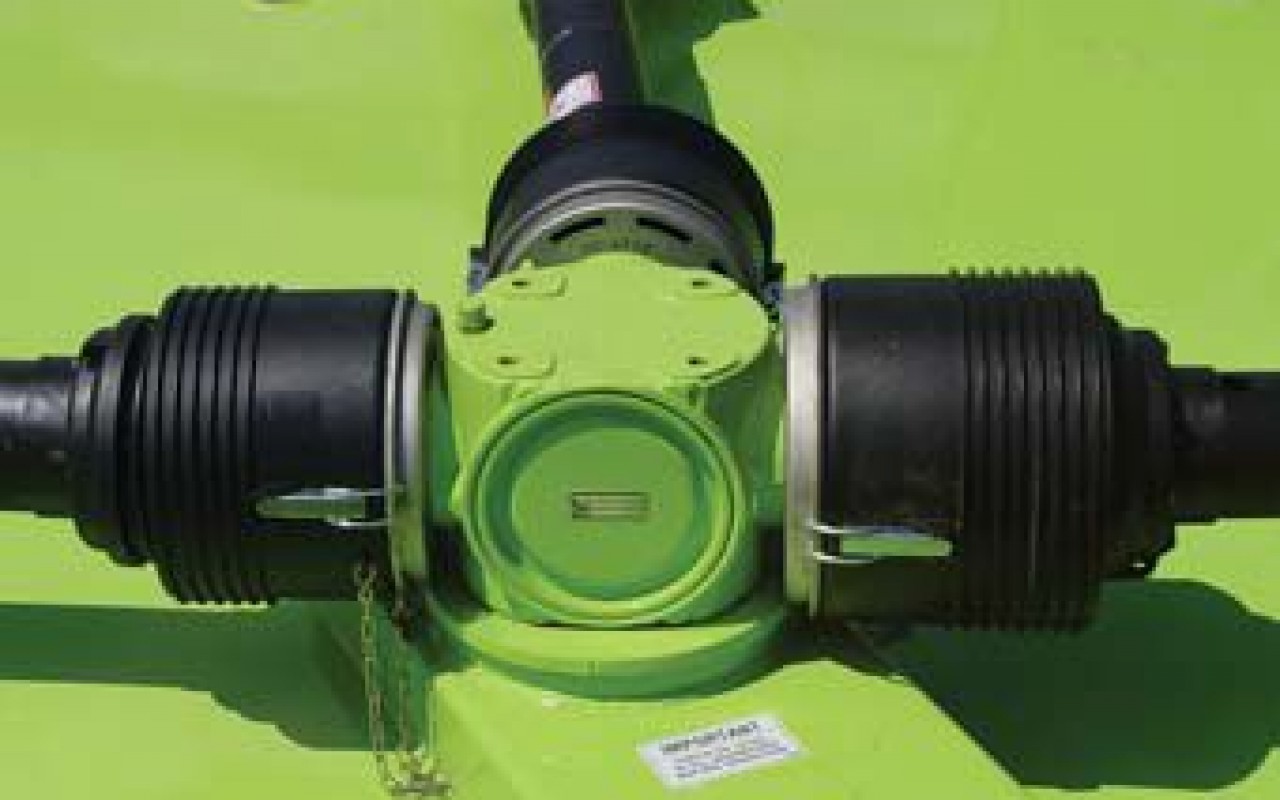

180hp divider box allows for unique driveline layout
-
3 m Transport width
Extra Information
Features:
Cutting Width: 42' (12.8m) reducing tractors and fuel costs
5-Plex Design: flexibility allows for 118" (3m) transport width
Over-Running Clutch: Provides worry-free shutdowns

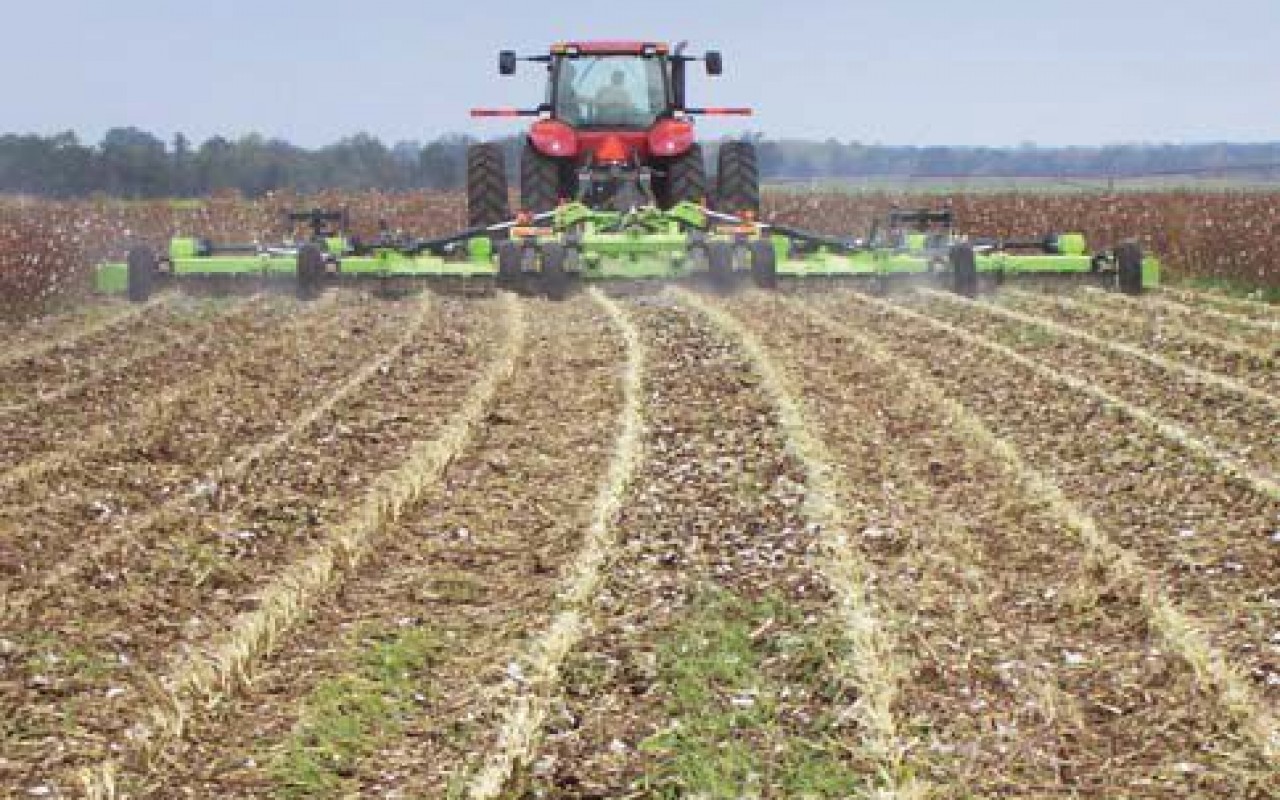

Compatible for all row crop cutting: 30", 32", 38", 40" and one meter row spacing

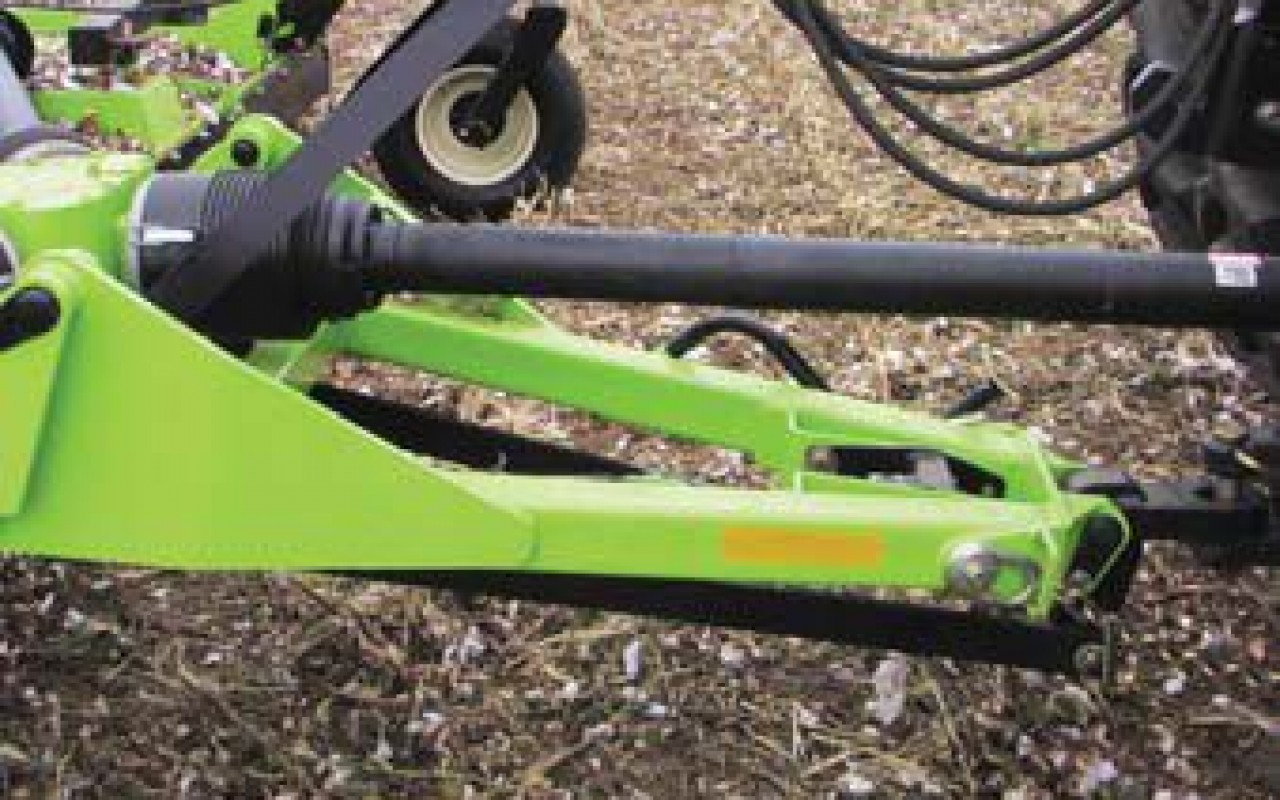

Parallel Solid Tongue Hitch: Maintains even load on the tractor drawbar

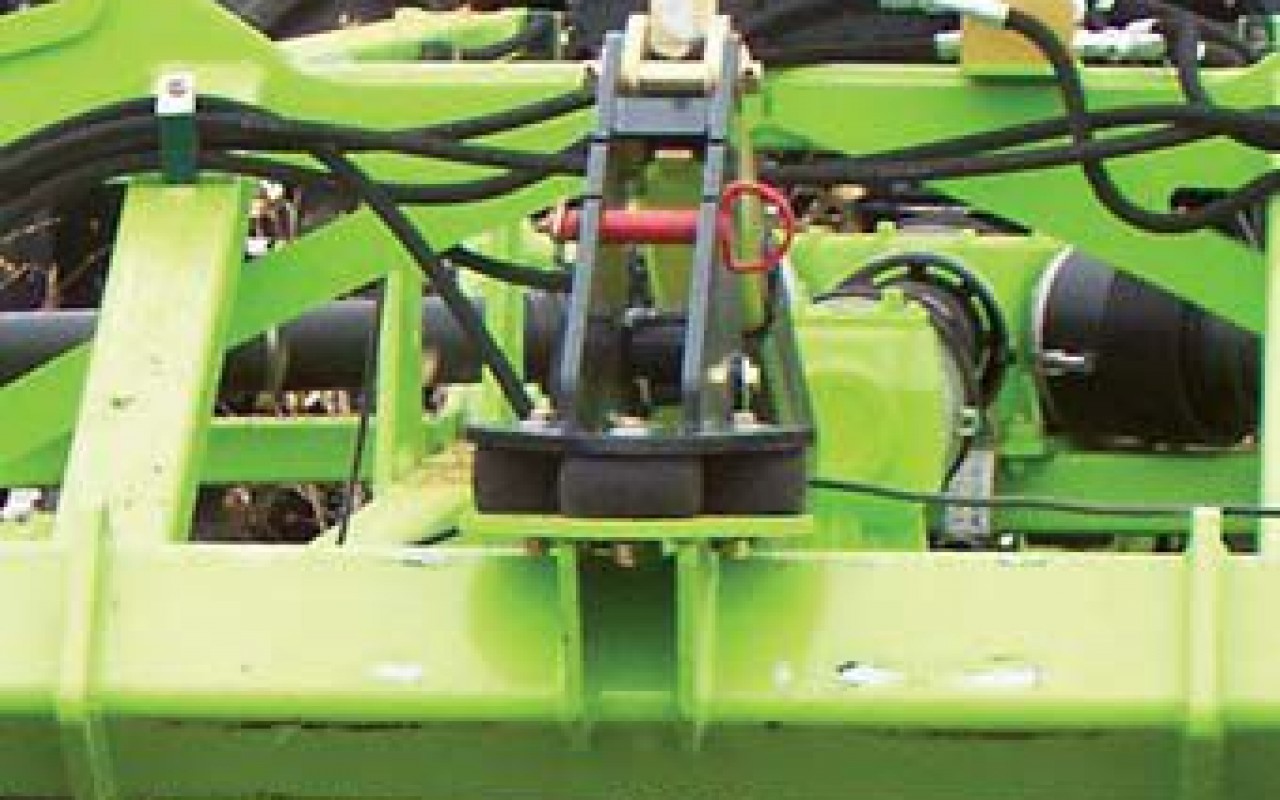

Robber Grommet Suspension: reduces shock loading and maintains even cutting
Unique Driveline: With independent rotor clutch protection

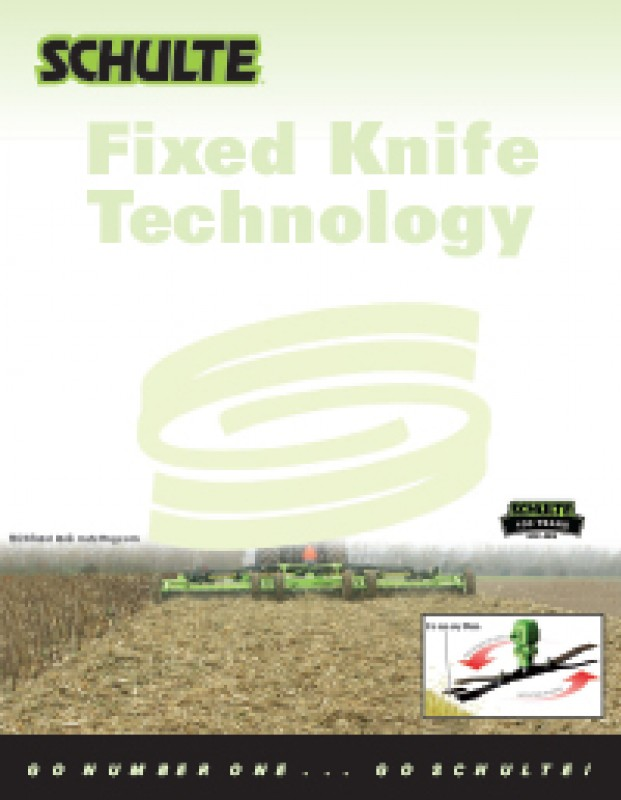

Optional Fixed Knife mulching: The Fixed Knife Shredding system equals unsurpassed shredding and spreading of cut material.
Fixed Knife Technology is introduced by fitting two blades, (one above another) on each side of the cutter bar that replaces the jumper pan unit. Stationary fixed knives are then strategically positioned under the deck of the cutter, whereby the two knives pass over and under the fixed knife, slamming the crop residue into the fixed knife. This material is then broken up and distributed evenly across the working width of the machine by making use of baffle plates. The points of each rotating blade split in two and pass by both sides of a fixed blade. The cut plant material or crop residues is then pulled in and carved up.
Specs
| Cutting Width | 42 ft | |
| Overall Width | 42.9 ft | |
| Overall Length | 24.25 ft | |
| Cutting Height | 2" - 16" (51mm - 406mm) | |
| Transport Width | 118" (3m) | |
| Weight | 18,000lbs (8165 kg) | |
| Cutting Capacity | 2" (51mm) | |
| Deck Thickness | .134" (10 ga) (3.4mm) | |
| Minimum Tractor HP | 250 hp (186 kW) | |
| Blade Tip Speed | 16,300 ft/min (4970 m/min) |
- Cutting Width
- Overall Width
- Overall Length
- Cutting Height
- Transport Width
- Weight
- Cutting Capacity
- Deck Thickness
- Minimum Tractor HP
- Blade Tip Speed
-
FX-742
- 42 ft
- 42.9 ft
- 24.25 ft
- 2" - 16" (51mm - 406mm)
- 118" (3m)
- 18,000lbs (8165 kg)
- 2" (51mm)
- .134" (10 ga) (3.4mm)
- 250 hp (186 kW)
- 16,300 ft/min (4970 m/min)
