10 Ton Horst Wagon With 8 Ply Tires

←Back • Inventory / Augers & Conveyors / 10 Ton Horst Wagon With 8 Ply Tires

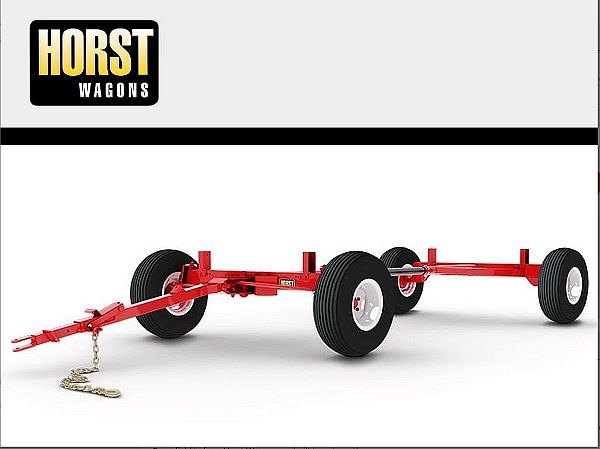

10 Ton Horst Wagon With 8 Ply Tires

$5,800.00

Plus Applicable Taxes

Located At
Edmonton S. (Nisku), AB

Call for Details
(780) 955-3400

Got Questions?

Product #: BRU10TONHORST8PLY

Product Description

10 Ton Horst Wagon With 8 Ply Tires

10 ton wagon gear
Quick hitch tongue
11L 15 8 Ply Tires, with 76" track width (2,540 lbs per tire)
Rim size: 15 x 8 x 6 HD
Standard reach length 11'
Wheelbase adjustable 8' 8" - 11' 2"
Safety chain (3/8" GR. 70)
Capacity (30 kph / 20 mph): 20,000 lbs
Capacity (50 kph / 30 mph): 18,000 lbs
Spindles : 2" Diameter, C1045 Hot Rolled
Hubs: 6 Bolt
Bearings - Bore Size (Inner/Outer): Taper Roller (1.80 / 1.38)
Front Axle: 6 x 3 x .250 Wall
Rear Axle: 6 x 3 x .250 Wall
Tongue Bracket Mounting: 1-1/2" Bolt Bearing Mtd.
Tongue Bolt: 1-1/8" Diameter
Tongue Latch: Retractable Automatic Relock
Reach Poles: 3" O.D. x .188 Wall - Round Tube
Bolster Stakes: Adjustable 38.5" - 40.5" - 42.5"
Steering: Automotive Type
Tie Rod Ends: Greasable Automotive Style Ball Joints
Wheelbase: Adjustable
Height From Ground To Top of Bunk: 24" (on 11L x 15 Tires)
Approx. Weight 740 lbs. (less rims and tires)

Delivery options are available, ask your salesperson for details.
Finance and lease options available OAC.

Specs

Make: Horst Welding
Model: 185 (10 Ton)
Year: 2023
Serial No: Available Stock
